62040 2WD Chevy GMC Truck 88-2000 4x2 Western Unimount Model 1575

A New Original Western Unimount for a 1988-1998 Chevy GMC 4x2 only. These are no longer available from Western. This will not fit the 3500HD. It is for the non HD 2WD trucks only.

The mount # is 62040 and model # is 1575. The 4x4 Chevy uses a different mount. We have them listed too, but this one will not fit. If you only need part of this mount, let us know. We can sell you any piece.

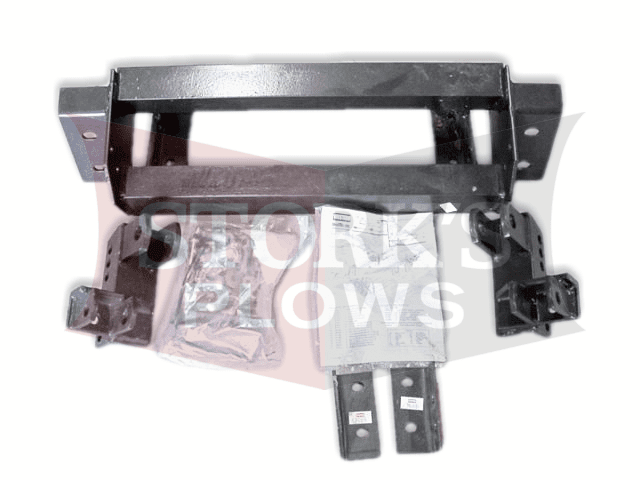

With this kit you get Frame 62006, Spreaders 62028 and 62029, Clamp Plates 62008 and 62009 and Hardware Kit 62038.

Here is a link to the install instructions:

If you also need wiring, this range of trucks had many headlight option: 2B , HB3-HB4, and LF/UF.

For 2B single glass sealed beams with DRL, you need Harness 61556 or Kit 61555. Without DRL, you need 61546 Harness or 61545 Kit.

For HB-3/HB-4 plastic lenses with replaceable bulbs and day time running lights, you need Harness 61586 or Kit 61585. Without DRL, you need 61716 Harness or 61515 Kit.

For LF/UF Glass sealed beams with DRL, you need  Harness 61581 -Modified or Kit 61560. Without DRL, you need Harness 61581 or Kit 61580.
