Aftermarket Blizzard Power Plow Handheld Control Old Style Power Hitch 810 8611 B62109 B62141

NOTE: This control will not work on a 1999-2000 810PP. These plows did not have a ground wire in the harness and this control will not work unless you add that ground. In the diagram below, pin # 7 will not have a wire in the truck side harness. If all the holes are not wired, you can not use this control unless you add that ground.

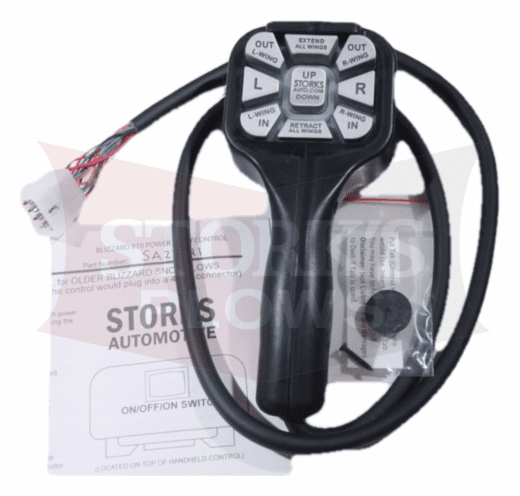

Here is a New Aftermarket Blizzard Handheld Control for the Power Plows. This has the plug right on it, not an adapter like some other aftermarket controls. This is a direct plug in to the joystick 62109 or touchpad 62141 control for the early Blizzard snow plows. This is for the 810PP, 8611PP and the 8611LP. (These are the blades with the power wings.)

On the top of this controller there is a 3 way switch allowing you to go from  off / on / Power Hitch.

NOTE: If you are using this control to replace the old joystick console, you will need the headlight switch kit 62138 to plug into the second plug, because this control does not have the switch built into it like the early one does. That kit is part #  62138.

Make sure you have the Power Hitch and not the Power Hitch II. If you are not sure what control you use, there are two easy ways to tell. First, match up the plug. Or second, see if your plow lights stay with the truck when you take the plow off. If they go with the plow, then you have the new style and this control will not work. However, we have them listed too.

Blizzard Power Plow aftermarket control instructions.

Aftermarket control user instructions.

• Control plugs directly into your existing harness, NO adapter required, just Plug-N-Plow
• Used on Blizzard power plows

• Please make sure the connector matches your connector before ordering
• Automatic Shut-off when not in use, approximately 22 minutes
• The plow blade will coast to a soft stop (left or right), results in smoother operation and decreased wear on the plows hydraulic system
• Express Up/Down Feature
• On/Off switch can be used as an Emergency Stop when required
• Illuminated keypad on control for night time plowing
• All control functions will time out (shut-off) after a period of time. This helps reduce wear on the pump motor and prevent unnecessary battery drain, Up-button, times out after 2.6 seconds, while left and right functions time out after 3 seconds
• Flexible Straight Cord
• Use for both Left or Right Hand
• Dash Mount Control Holder Included
• Instructions come with each control
• Designed and Manufactured in the U.S.A.
