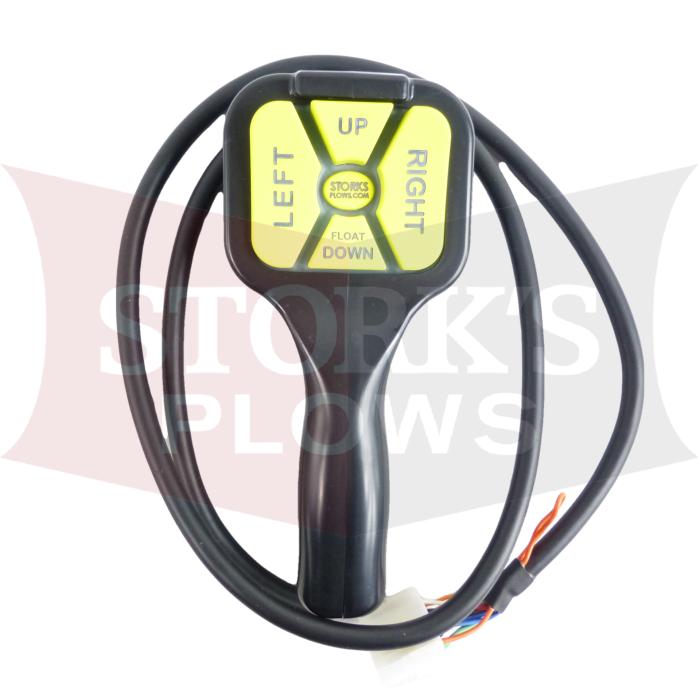

Aftermarket Controller Meyer Diamond Handheld Pistol Grip Control 22690

Here is a good quality aftermarket Handheld Controller.

This is a cheaper option to the Meyer 22690 control. It has the newer 12-pin plug. We also have the same control in the 6-pin listed on the left, if that is the harness you have. This works on all Meyer Straight Blades, but you must have the 12-pin harness.

Straight Blade Aftermarket Control Instructions.

Aftermarket Control User Instructions.

• Control plugs directly into your existing harness, NO adapter required, just Plug-N-Plow
• Used on Meyers/Diamond Straight Blade Plows
• Please make sure the connector matches your connector before ordering
• 4 way operation
• Automatic Shut-off when not in use, approximately 22 minutes
• The plow blade will coast to a soft stop (left or right), results in smoother operation and decreased wear on the plows hydraulic system
• Express Up/Down Feature
• On/Off switch can be used as an Emergency Stop when required
• Illuminated keypad on control for night time plowing
• All control functions will time out (shut-off) after a period of time. This helps reduce wear on the pump motor and prevent unnecessary battery drain, Up-button, times out after 2.6 seconds, while left and right functions time out after 3 seconds
• Flexible Straight Cord
• Use for both Left or Right Hand
• Dash Mount Control Holder Included
• Instructions come with each control
• Designed and Manufactured in the U.S.A.
