17112 Meyer EZ Classic Plow Mount 1999-2004 Ford F250 F350 Super Duty

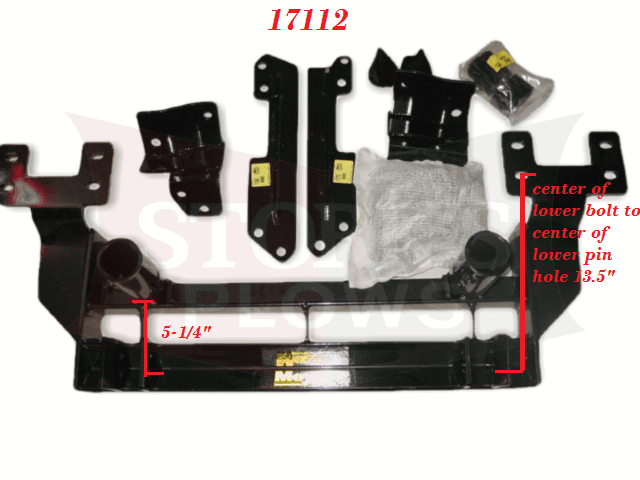

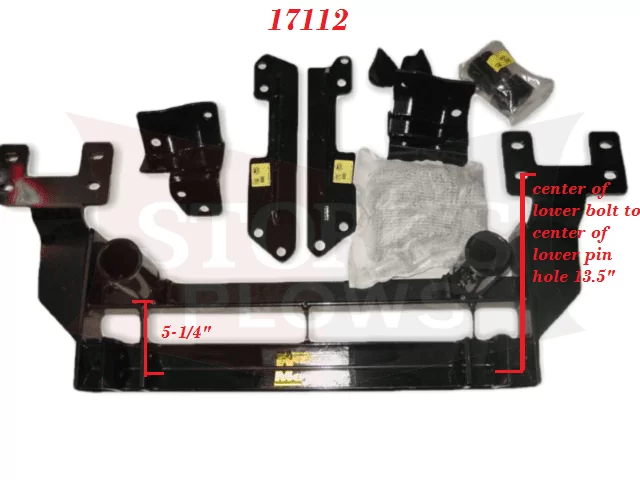

Here is a New Mount (part # 17112) to fit the Meyer EZ Classic mount to a 1999-2004 Ford F250, F350 Super Duty. There is also a 17113 kit for the taller trucks. If your truck has the 6000 lb spring code, you need the 17113. With this kit you get the Meyer Clevis #11660, side arms #11773 and #11652 and the side plates #11775 and #11646. This also has the hardware bag #08708 and light elevation kit #08626. This does not come with the tubular lift frame. You will need to get that if you don't have it. The lift frame only fits the full size trucks. Lift frame part # 11255.

If you need some measurements, from center to center of the tube it is 23.5" and center to center on the A-frame tabs are 23.5".

Meyer wants a blade pin on height of 11-1/4" is Ideal.

Here is the parts list and Installation Instructions for 17112.

In 2004-2005 F250-F550 trucks, there was a change made to the brackets for the vehicle blocker beam which affected this mount. You can find the service bulletin at this link.

For 2001 model F250-F550 vehicles the blocker beam must be completely removed. You can read more details here.
