New Chevy GMC Blazer Jimmy S-10 Western Unimount 62200 1505

This is no longer available. Western does not make the main piece of the mount as of 1-2022.

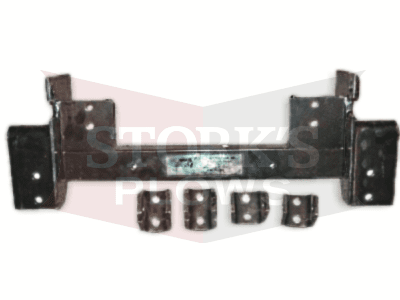

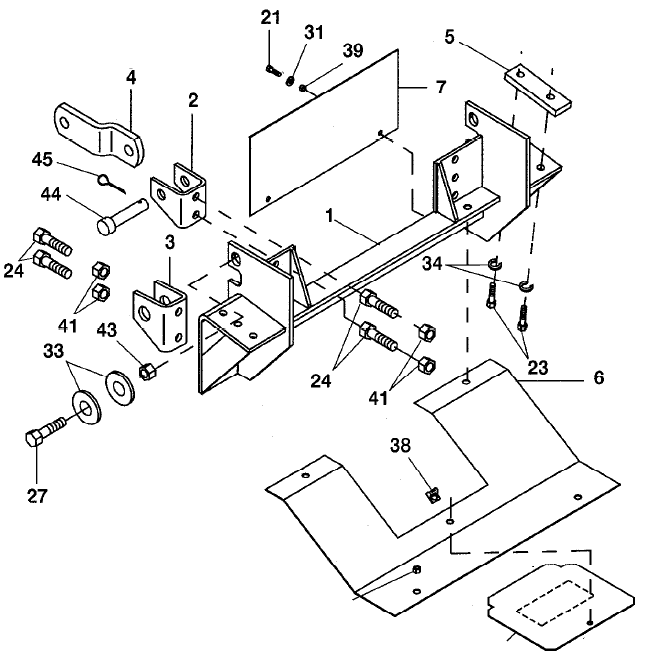

This is a new Unimount for a 1983 and newer Chevy Blazer. This fits up to around 2002. This is the main mount piece and the 4 front brackets only. If you need more parts, add them to your cart. The mount is supposed to be with the access shields. We have them available in the store too, but for the cost many people go without them. This mount does not come with bolts or link arms. The link arms for the Blazer are special for the Blazer only - #62246. Most of the bolts are all normal, but if you don't have the nut bars (Part # 61486), you will need them for the front bolts too. The mount frame part # is 62202. You get 2 of each lug # 61916, 61917. These are # 1, 2, and 3 in the picture below.

The link below has a complete list of the needed hardware if you want to pick it up on your own:

Chevy GMC S10 Blazer GMC Jimmy 1983+ 1505 62200 Installation Instructions and Parts List.

If you need headlight wiring, they are listed below. You need to check what lights you have.

2B Single Glass Sealed Beam Kit 61545 83-97 Chevy Blazer.

2E Blazer Headlights Kit 61575 83-97 Blazer.

HB3-HB4 Headlights Kit 61515 83-97 Only Chevy Blazer.

Hb3-Hb4 Headlights for 98 and Newer Blazer Only.

.
