1TBP27 New Curtis 1.5x10 Angling Lift Cylinder 1 Hole Sno Pro 3000

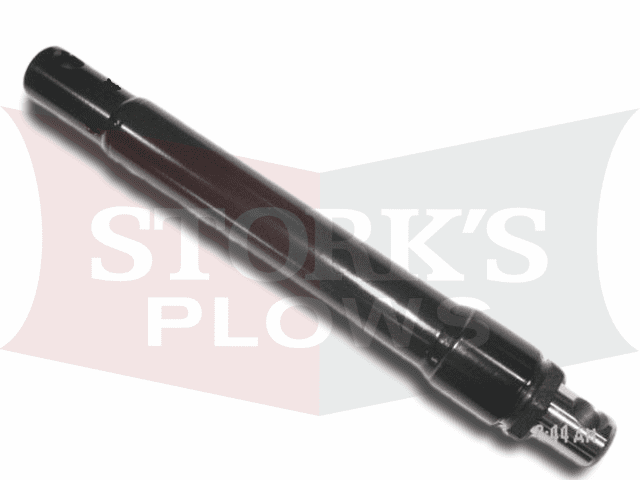

This is a new aftermarket Curtis Angling Cylinder. This cylinder was used on the Sno Pro 3000 straight blades. The spring return Curtis V plows also used this cylinder for both the lift ram and the angling cylinders. This is part # 1TBP27. It is a 1.5x10 cylinder.

This has 1" pin holes.

The cylinder is a 1.5"x10". The 10" is the movement of the cylinder. In the closed position it measures 17" from center to center on the hole.

From end to end the tank including the nut is 16.5".

This has the normal 1/4" pipe thread hole for a hose. The port is in the top in line with the pin hole.

The rod end is 1.5" and the base end is 1.75".
