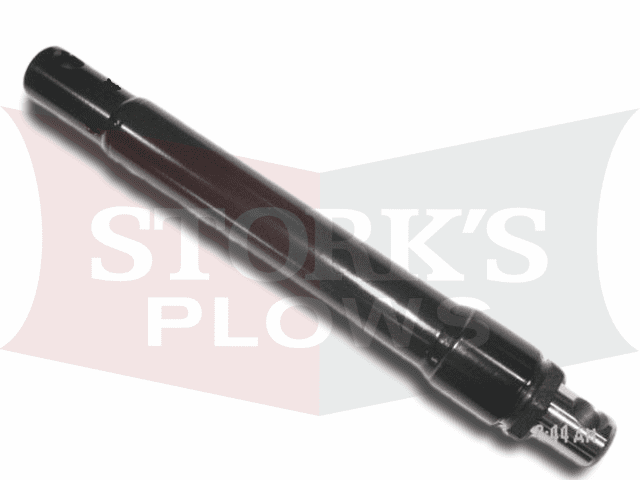

25209 / 66342 New Western 1.5x10 Angling Cylinder 1 Hole Conventional Mount SA13

This is a New Aftermarket Western Angling Cylinder. This one came on the old conventional mounts. There was more than one option through the years, so make sure it is the correct one. We have others, if it is not. The Western had 2 part #s 66342 and 25209 and the aftermarket # is 1304200.

This has 1" pin holes (not 3/4).

The cylinder is a 1.5"x10".

The 10" is the movement of the cylinder in the closed position.

It measures 17" from center to center on the hole.

From end to end, the tank including the nut is 16.5".

This has the normal 1/4" pipe thread hole for a hose.

The port is in the top in line with the pin hole.
