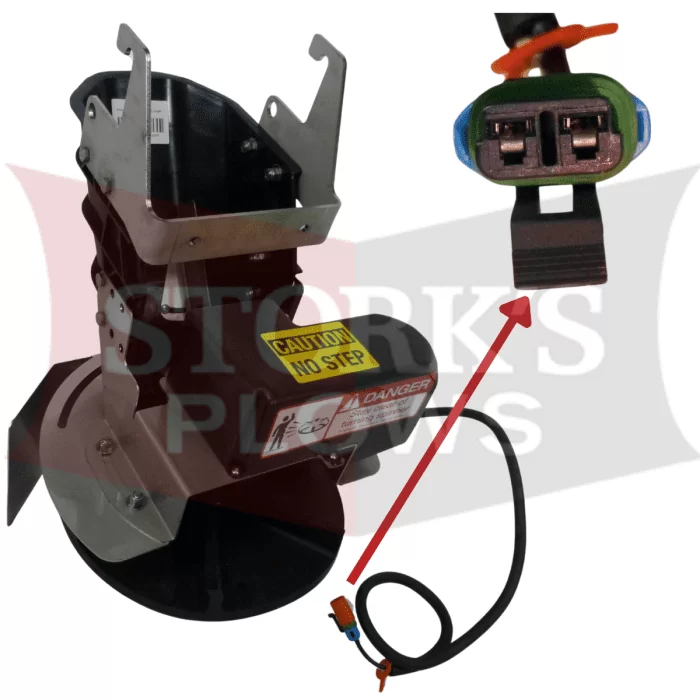

3025070 SHPE Replacement Chute Assembly Standard Length Buyers SaltDogg

This is a standard length replacement chute assembly for Buyers SaltDogg SHPE spreaders. Part number 3025070.

Compatible with any SHPE spreader, old or new.

Includes 1/2 HP spinner motor and 14" poly spinner disk.

If you need the taller Extended Chute that is part # 3007527.

Here is a complete parts list of what makes up this spreader:

• 3025070 - Chute ASM, SHPE
• 3025063 - Chute, Poly, SHPE
• 3027699 - Chute Handle, SHPE0750/1000/1500/2000
• FCS038016125SS - Screw, HHC, 3/8in-16 X 1-1/4in SST
• FWF038100007SS - Washer, Flat 3/8in USS SST
• FNE038016044SS - Nut, Nylock 3/8in-16 X 7/16in SST
• 3039828 - Guide, Material
• 3009646 - Screw, Pan 1/4in-20 X 3/4in SST
• FNE025020031SS - Nut, Nylock 1/4in-20 SST
• 3025715 - Bracket, Gear Motor / Shield
• 3033547 - Bracket, Shield
• FCS038016075SS - Screw, HHC 3/8in-16 x 3/4in SST
• 3017444 - Sheild, Chute
• 3014960 - Bolt, Carriage 3/8in-16 x 1 SST
• 3017356 - Washer, Lock 3/8in SST
• 3025064 - Nut, Wing 3/8in-16 SST
• 3027293 - Gear Motor 12 VDC Spinner
• FCS031018063SS - Screw, HHC 5/16in-18 X 5/8in SST
• FWF031075006SS - Washer, Flat 5/16in SST
• 3025067 - Enclosure, Gear Motor
• 3007844 - Decal, Danger Stay Clear
• 3002631 - Label, "No Step"
• 3001537 - Screw, BHC 10-24 X 5/8in SST
• FNE010024024SS - Nut, Nylock 10-24 SST
• 3025065 - Bushing, Cable Strain Relief
• 3012393 - Spinner, 14in Poly CW
• 3007113 - Pin, Clevis, 5/16in X 2-1/2in ZN
• 3014994 - Cotter Pin, 1/8in X 1in SST
