33560 Western Ultramount Commercial Mount 2019-2023 GM International CV Chevy GMC 4500 5500 6500 4x2 4x4 SnowEx
A New Commercial Truck Mount for a 2019+ GM Silverado 4500, 5500 and 6500
A New Commercial Truck Mount for a 2019-2023 GM Silverado 4500, 5500 and 6500, either 4x2 or 4x4 as well as an International CV / MV. This mount is not used on the LCF trucks.
This is mount # 33560. This Western Ultramount is made to be used with the new 10" Pro Plus plow and the Wideout XL, but this will also mount up to any Western Ultramount, SnowEx HD plow and Blizzard Power Hitch 2 plows.*

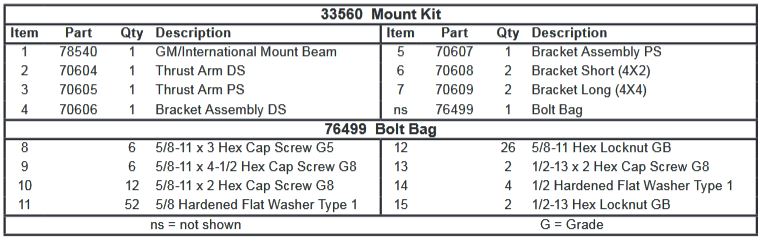

Kit includes: Mount 78540, DS Thrust Arm 70604, PS Thrust Arm 70605, DS Bracket Assembly 70606, PS Bracket Assembly 70607, Short (4x2) Bracket Assembly 70608, Long (4x4) Bracket Assembly 70609, Bolt Bag 76499.

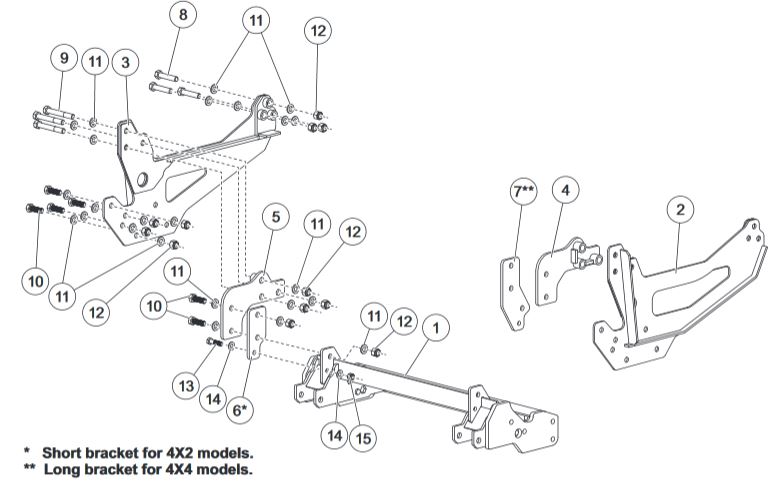

You can find the Parts List and Diagrams at this link.
*We have not yet tried to install the Blizzard adapter, there is a chance it will need to be modified if there is a clearance issue.
Truck Manufacturer | Chevy/GMC, International |
---|
