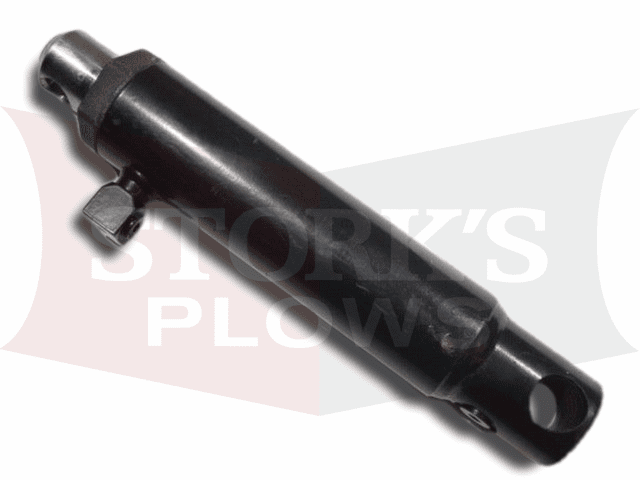

40520 New Factory Blizzard 2x5-1/2" Lift Cylinder 7600LT 8000LT

Here is a New Factory Blizzard Lift Cylinder # 40520. This is for a Power Hitch 2 plow. This only fits 2 plows, the 7600LT and the 8000LT. This one is the lift cylinder that mounts below the a frame for the draw latch. It is a dual-acting cylinder that mounts and dismounts the plow to the truck mount. This is considered a 2x5-1/2".  If they are pitted they should be replaced since those pits take in water and will cause freeze-up in the pump. Get some Blizzard fluid while you are at it.

This cylinder also comes in the draw latch assembly 40519.

We also sell parts for this cylinder - the gland nut is # 48985, the piston assembly is 49498.

If you need the pins, we have them too.

The one for the tank end is 40547 with cotter or 40458 1x6.5" clevis pin.

The rod end is #64390 3/4"x5-3/8".

Here is a link to the parts break down on these plows

Cylinder info :

If you are unsure, here is more information on this cylinder: it is dual acting cylinder, has a 1" pin hole in the tank end and a 3/4" hole in the rod end. The chrome cylinder is 1-1/2" across and end to end on the black housing is 11-1/2" including the nut. The ports come out the side, the rod end port is a raised block.
