49049 Western Cable Operated Conventional Isarmatic Plow Pump Rebuild Kit 1.5" Lift Ram

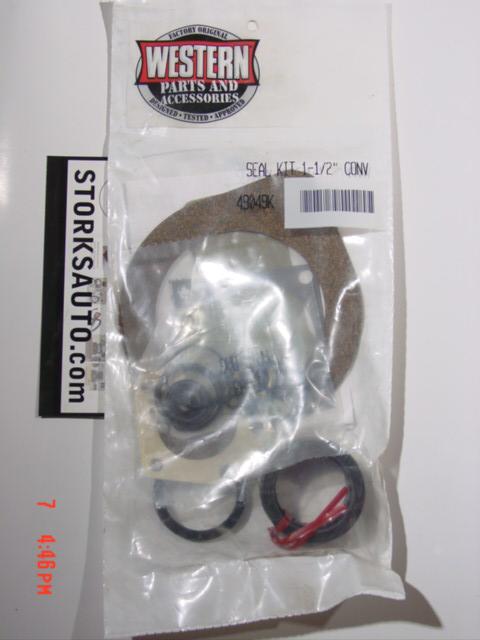

Here is a Genuine Western Cable Operated Plow Pump Master Rebuild Kit (part # 49049.) Often called the Mark III. These came on the Conventional mount plows. To complete this kit, you will also need Genuine Western oil and Western Red paint. This is for the pump with the 1.5" lift ram. There is also a rare 2" model that needs kit # 49050.
Here is a Genuine Western Cable Operated Plow Pump Master Rebuild Kit (part # 49049.) Often called the Mark III, these came on the Conventional mount plows. To complete this kit, you will also need Genuine Western oil and Western Red paint. This is for the pump with the 1.5" lift ram.
There is also a rare 2" model that needs kit # 49050.
This is also the same as the Fisher cable pumps that have the internal lift ram.
We also sell a kit that just gives you all the seals for the valve block 49005K.
Here is a link to the instructions for this kit.
Here is a link to the Complete Mechanics guide for this pump. <<<<<<<<<
Included in kit:
1x 55136 1-1/2" Ram Packing Set
1x 55137 1-1/2" Ram Wiper Ring
1x 55587 Check Valve O Ring No 112
1x 25730 Check Valve O Ring No 012
1x 55587 Hub Nut O Ring No 112
1x 55371 Cam Shaft O Ring No 008
1x 55350 3W Cover Plate Gasket
1x 25620 Pump O Ring No 115
2x 25730 Lift Valve O Ring No 012
1x 25618 Base Lug O Ring No 216
2x 25731 Cable End O Ring No 010
1x 25718 Rubber Quad Ring
2x 25861 Seal Plate Gasket
2x 55252 4W Valve O Ring No 015
1x 55374 Manifold Gasket
1x 55951 Shim Spacer .0005"
1x 55735 Shim Spacer .00035"
1x 55371 4W Valve Shaft O Ring No 008
1x 55189 Cover Plate O Ring No 025
1x 49014 Oil Seal
2x 55371 Cushion Valve Stem O Ring No 008
2x 25731 Cushion Valve Stem O Ring No 010
1x 55591 Expanison Plug 1/4"
