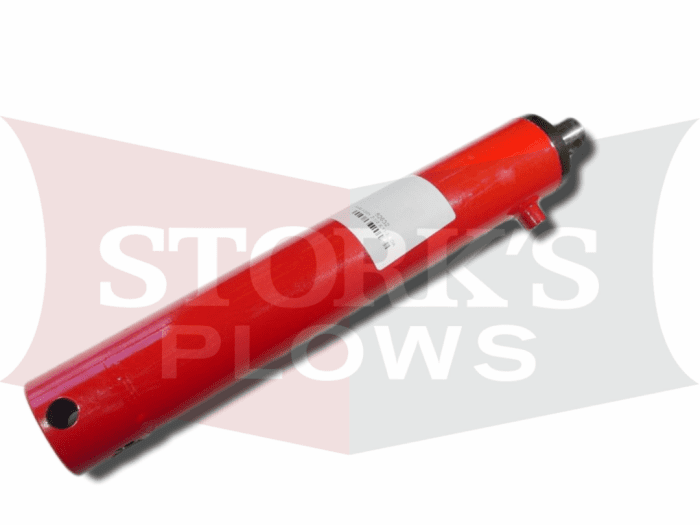

52632 SnowEx Lift Cylinder HDV V Plow Blade 2-1/2x11-3/4" Ram

A New Factory SnowEx Lift Cylinder 52632. It was used on the HDV V blades.

This has a 1/2" pin hole on the rod end and 3/4" on the tank end. The cylinder is a 2-1/2"x11-3/4". In the closed position, it measures 18" from center to center on the hole. From end to end, the tank including the nut is 17.5". The ports for the hoses are opposite the pin holes.

If you need parts to fix one of these cylinders the gland nut is part # 52633 and the seal kit is part # 52634.
