61931 Bolt Kit Western Unimount Frame Ford Explorer Ranger Bronco II Hardware 1335 61950
New Original Western Unimount hardware kit for Mount # 61950 and model # 1335.

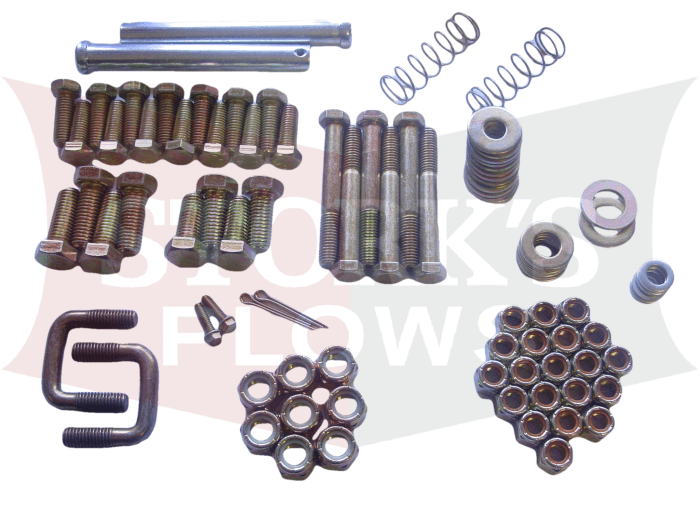

Here is the original Western Hardware kit 61931 for mount 61950 Model # 1335.
This gives you teh hardware needed to bolt this frame to the truck.
ITEM PART NO.
90100 Bolt 1/2-13X1-1/2 HX CS G5
90107 Bolt 1/2-13X4 HX CS G5 lP
90127 Bolt 5/8-11X1-1/2 HX CS G5
90128 Bolt 5/8-11X1-3/4 HX CS G5
90499 Special Ubolt 1/2-13X1-9/16
91335 1/2" Hex Lock Nut
91337 5/8" Hex Lock Nut
91160 Special Washer
91105 1/2 PLAIN WASHER
91139 5/8 PLAIN WASHER
This Kit is just the hradware there is a seperate kit that gives you the spacers and shims Part # 61932.
Truck Manufacturer | Ford |
---|
