67865 Chevy GMC 1589 Truck 88-2000 4x4 Western Ultramount, SnowEx, Blizzard Power Hitch 2

This is a new Original Mount (#67865) AKA 1589. This mount is used for Western Ultramount, Blizzard Power Hitch 2, and the new SnowEx plows for a 1988-1998 Chevy GMC 4x4. Some of the 2500 and 3500 trucks used this "Classic" body as late as 2000. For all trucks with the 88-98 body. This will work with both a Western Ultramount or a Western Unimount with the #27170 adapter. This does not fit Suburbans and Blazers before model year ‘91.

If you do not have the Ultramount receivers, you will have to get them separately as they are not included in this listing.

Here is a link to the parts list

Here is a link to the Installation instructions

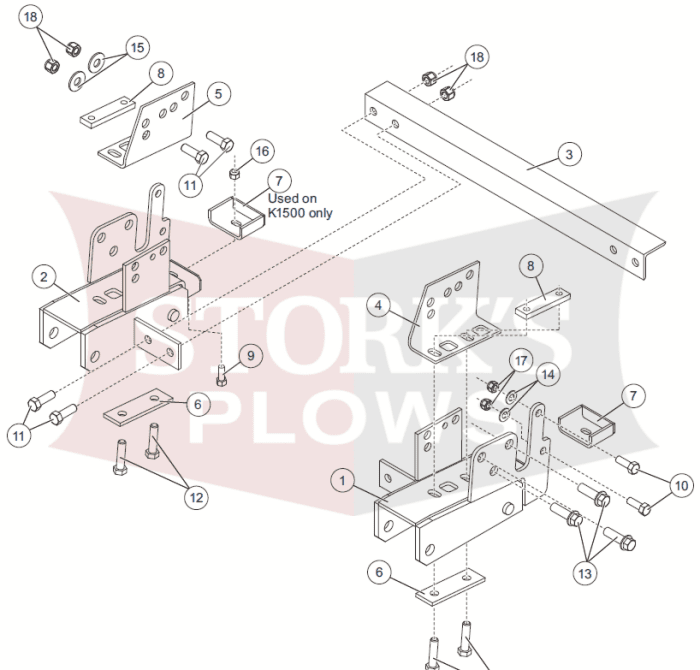

Includes these parts: Driver Side Mount #67866, Passenger Side Mount #67867, Cross Bar #67696, Frame Plate #62517, Frame Plate #40982, 2x Stop Plates #62974, 2x Spacers #67868 and Bolt Bag #67890.

If you need headlight wiring, too, below is a chart to help:

Relay wiring-

For 2B single glass sealed beams with DRL, you need harness 61556 or Kit 61555. Without DRL, you need 61546 harness or 61545 kit.

For HB-3/HB-4 plastic lenses with replaceable bulbs and daytime running lights, you need harness 61586 or kit 61585. Without DRL, you need 61716 harness or 61515 kit.

For LF/UF glass sealed beams with DRL, you need harness 61581 -Modified or kit 61560. Without DRL, you need harness 61581 or kit 61580.

3 port module-

For 2B glass sealed beam 3 ports, you need harness 28464 or kit 29051.

For HB-3/HB-4 plastic lenses with replaceable bulbs, you need harness 28253 or wiring kit 29048.

For LF/UF glass sealed beams, you need kit 29049 and B62225-1 or harness 28986 and B62225.

2000, CHEVY/GMC, K2500 CLASSIC
2000, CHEVY/GMC, K3500 CLASSIC
2000, CHEVY/GMC, SUBURBAN K1500
2000, CHEVY/GMC, SUBURBAN K2500
2000, CHEVY/GMC, YUKON DENALI 1500

1999, CHEVY/GMC, K1500 CLASSIC
1999, CHEVY/GMC, K2500 CLASSIC
1999, CHEVY/GMC, K2500HD CLASSIC
1999, CHEVY/GMC, K3500 CLASSIC
1999, CHEVY/GMC, SUBURBAN K1500
1999, CHEVY/GMC, SUBURBAN K2500
1999, CHEVY/GMC, TAHOE/YUKON 1500

1998, CHEVY/GMC, BLAZER/JIMMY
1998, CHEVY/GMC, K1500 CLASSIC
1998, CHEVY/GMC, K1500 W/T CLASSIC
1998, CHEVY/GMC, K2500 CLASSIC
1998, CHEVY/GMC, K2500HD CLASSIC
1998, CHEVY/GMC, K3500 CLASSIC
1998, CHEVY/GMC, K3500 CLASSIC (St Frame)
1998, CHEVY/GMC, SUBURBAN K1500
1998, CHEVY/GMC, SUBURBAN K2500
1998, CHEVY/GMC, TAHOE/YUKON 1500

1997, CHEVY/GMC, K1500 CLASSIC
1997, CHEVY/GMC, K1500 W/T CLASSIC
1997, CHEVY/GMC, K2500 CLASSIC
1997, CHEVY/GMC, K2500HD CLASSIC
1997, CHEVY/GMC, K3500 CLASSIC
1997, CHEVY/GMC, SUBURBAN K1500
1997, CHEVY/GMC, SUBURBAN K2500
1997, CHEVY/GMC, TAHOE/YUKON 1500

1996, CHEVY/GMC, 1/2 TON SUBURBAN (1500)
1996, CHEVY/GMC, 3/4 TON SUBURBAN (2500)
1996, CHEVY/GMC, K1500
1996, CHEVY/GMC, K2500 HEAVY DUTY
1996, CHEVY/GMC, K3500
1996, CHEVY/GMC, TAHOE
1996, CHEVY/GMC, YUKON

1995, CHEVY/GMC, 1/2 TON SUBURBAN (1500)
1995, CHEVY/GMC, 3/4 TON SUBURBAN (2500)
1995, CHEVY/GMC, K1500
1995, CHEVY/GMC, K2500 HEAVY DUTY
1995, CHEVY/GMC, K2500 LIGHT DUTY
1995, CHEVY/GMC, K3500
1995, CHEVY/GMC, TAHOE
1995, CHEVY/GMC, YUKON

1994, CHEVY/GMC, 1/2 TON SUBURBAN (1500)
1994, CHEVY/GMC, 3/4 TON SUBURBAN (2500)
1994, CHEVY/GMC, BLAZER (FULL SIZE)
1994, CHEVY/GMC, K1500
1994, CHEVY/GMC, K2500 HEAVY DUTY
1994, CHEVY/GMC, K2500 LIGHT DUTY
1994, CHEVY/GMC, K3500
1994, CHEVY/GMC, YUKON

1993, CHEVY/GMC, 1/2 TON SUBURBAN (1500)
1993, CHEVY/GMC, 3/4 TON SUBURBAN (2500)
1993, CHEVY/GMC, BLAZER (FULL SIZE)
1993, CHEVY/GMC, K1500
1993, CHEVY/GMC, K2500 HEAVY DUTY
1993, CHEVY/GMC, K2500 LIGHT DUTY
1993, CHEVY/GMC, K3500
1993, CHEVY/GMC, YUKON

1992, CHEVY/GMC, 1/2 TON SUBURBAN (1500)
1992, CHEVY/GMC, 3/4 TON SUBURBAN (2500)
1992, CHEVY/GMC, BLAZER (FULL SIZE)
1992, CHEVY/GMC, K1500
1992, CHEVY/GMC, K2500 HEAVY DUTY
1992, CHEVY/GMC, K2500 LIGHT DUTY
1992, CHEVY/GMC, K3500
1992, CHEVY/GMC, YUKON

1991, CHEVY/GMC, K1500
1991, CHEVY/GMC, K2500 HEAVY DUTY
1991, CHEVY/GMC, K2500 LIGHT DUTY
1991, CHEVY/GMC, K3500

1990, CHEVY/GMC, K1500
1990, CHEVY/GMC, K2500 HEAVY DUTY
1990, CHEVY/GMC, K2500 LIGHT DUTY
1990, CHEVY/GMC, K3500

1989, CHEVY/GMC, K1500
1989, CHEVY/GMC, K2500 HEAVY DUTY
1989, CHEVY/GMC, K2500 LIGHT DUTY
1989, CHEVY/GMC, K3500

1988, CHEVY/GMC, K1500
1988, CHEVY/GMC, K2500 HEAVY DUTY
1988, CHEVY/GMC, K2500 LIGHT DUTY
1988, CHEVY/GMC, K3500
