8417 Fisher MM 12 Pin Plow Light Kit Toyota Chevy Dodge

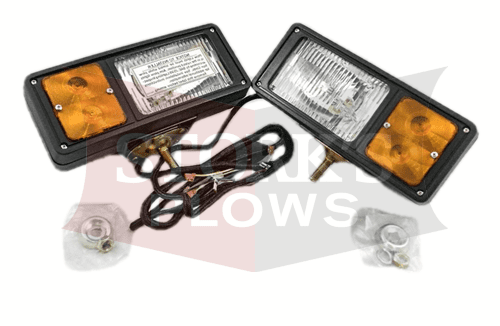

A new Fisher 8417 12-Pin kit. The kit originally came with the vehicle harness, but we are selling just the lights. You will be getting the Western 61550 set of the same lights. They used these on vehicles with DRL lights. This set was used on 1999-2002 Dodge Ram and Dakota, '88-'95 Chevy and GMC with the DRL lights and most Toyota trucks. These lights were used on the straight blades with relay wiring. These were on the Fisher MM with both the belt drive and the out front Isarmatic pumps. This is for a 2-plug relay system, 12-pin only. If you have 9-pin you need 8416 lights. These plug into the 12-pin truck harness. This is the complete kit - two lights and harness ready to bolt on. Has the spade connectors ready to hook up to the plow pump. If you only need parts for the lights, we have all them, too.

Look below for more info.

There are two sets, both 12-pin. The other is Western part # is 64078. These can also be used with the Fisher 12-pin plows. The two kits use the same harness and the same housing, but the wiring internally is different. The 64078 lights are used on the 03+ Chevy and 03 + Dodge.
