9' Fisher HD Blade Base Angle 7669 Trip Edge Plow Blade "L" Series Blade 7659
*Because of the size, this has to go freight. You will need a business address with a forklift.
One New Base Angle for a 9' Fisher HD blade ("L" series). These base angles are different depending on the generation of the blade. An easy way to identify if your blade is the L series blade: Fisher offered the 9' HD plow in "M", "H" and "L". This is basically the age of the plow.
If you put a tape measure from one end of the blade to the other, the trip springs are located at 28", 44", 64", and 80".

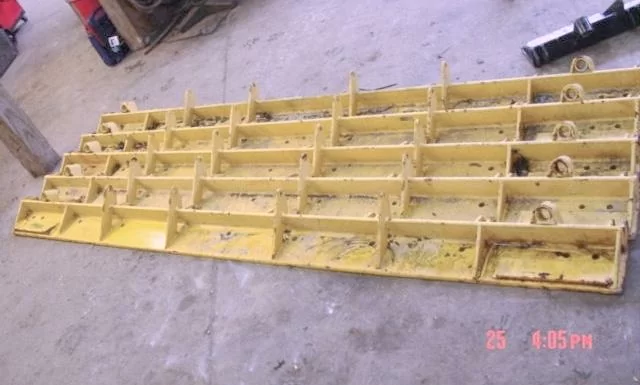

The part # for this base angle is 7669. It fits on blade 7659.
This one has eleven cutting edge bolt holes.
It is fastened to the blade by eight pins 3/4" x 2-3/16" pins (part # 5523K).
Here is a link to the parts diagram for the "L" series Fisher HD Blades.
We can also ship. Click here for a Shipping Quote.
Type | Trip edge / Base angle |
---|---|
Edge material | Steel |
Edge Thickness | 1/2" |
Edge width | 9' (108") |
Plow Brand | Fisher |
