49317 9 Pin Plow Side Repair Harness Western Unimount Fisher Minute Mount MM 22335K Relay Wiring

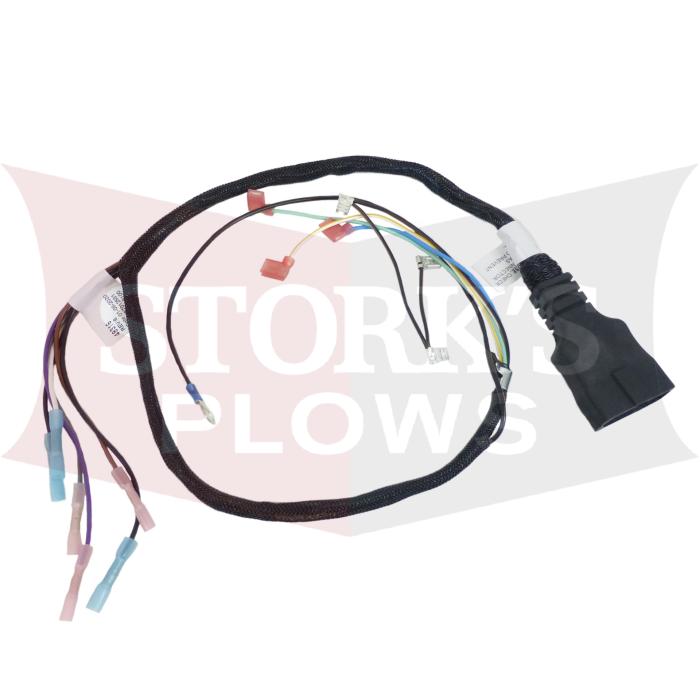

Here is a new Genuine Western/Fisher 9 pin repair harness for the plow side (Western part #49317 or Fisher 22335K.) This is for 9 pin only. It is the same for Western and Fisher.

We recommend replacing the whole harness 61438 Western 21293 or 8246 Fisher that goes all the way up into the lights, but this is the cheaper way. It runs to the pump and has connectors to attach to the lights. These are a good fix if your pins are corroded or plug is bad.

Can also be used if you need to swap from 9-12 pin. We have the 12 pin listed if you need that too. The 9 pin is the relay style wiring. This was used on Western Unimount, some Ultramounts and Fisher MM plows. This can also be used on a Conventional mount conversion to an electric solenoid pump. Don't forget a tube of dielectric grease and the covers to protect them in the future.

If you need the truck side that is 49308 or they sell them both in a kit as part # 49366K.

If you need the light wiring for your truck or power cables, we have them listed too.

We also have the repair harness for the truck side.
