96601 V-Maxx auger transmission 78:1 Sp-2200 SP-2400 SP-9300 SP-9500 D6894

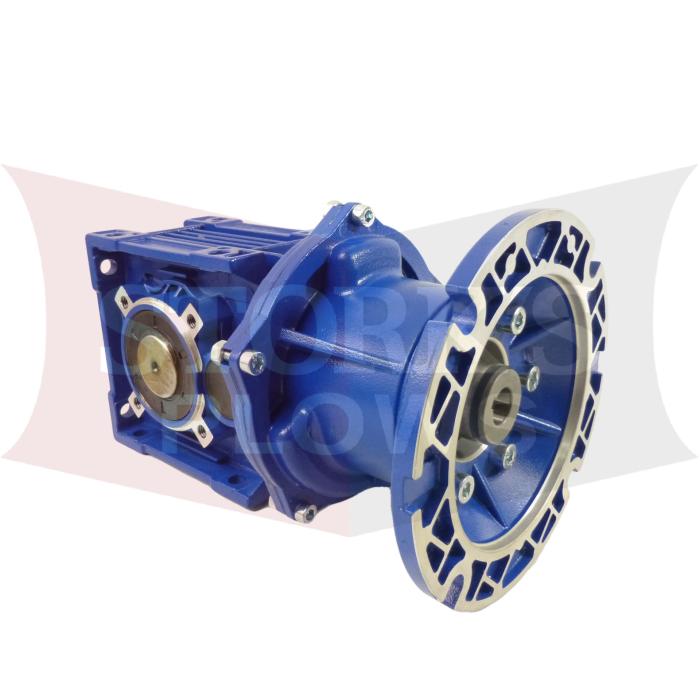

A New # 96601 SnowEx Transmission.
A New #96601 SnowEx Transmission. This replaced the old # D6762. That kit includes gearbox D6894, D6873 (3/16 key stock X2), D6165 (5/16" flat washer X4), D6138 (5/16" Lock nut X4) , D6752-1 (Support bracket X2), D5753 (M8-1.25X16mm Flange bolt X8).
This is a 78:1 speed reducer transmission used in combination with motor # D6872 or D6825. The motor side has 5/8" hole with a key slot. The drive side shaft is 3/4" with a key as well. This is just the transmission with the 3/4" shaft and key.
There is another transmission that is the exact same size and dimentions but has a differant ratio for the VX-2200 High putput , that is part # D5341. (99799)
It is used on the spreaders below:
Part type | Gear boxes |
---|---|
Spreader Brand | Snowex |
Spreader Drive Type | Electric |
Spreader Style | Inbed |
Spreader Feed type | Auger |
