99117 Spreader 20:1 Gearbox Western Striker Fisher Steel-Caster Gas Hydraulic Electric 95567

A New Spreader Gearbox, part # 99117.

This is for the Early Western Striker and Tornado spreaders, Early Fisher Steel-Caster and poly caster spreaders, for electric,  hydraulic and gas models. If you have a newer model with the Blue gear box this will not work.

The short shaft measures 7-3/4" from the seal to the end and 1" in diameter after the shoulder where it steps down. This has a key way cut into it. The long shaft measures 18.5" x 1-1/8" and has the sprockets, bearing and machine key already installed on it.

The tag says Canimex Model CK067-20L-208446. Size 67.7 Ratio 20:1.

If you want just the gearbox without the rest of the pieces, that is 95567.

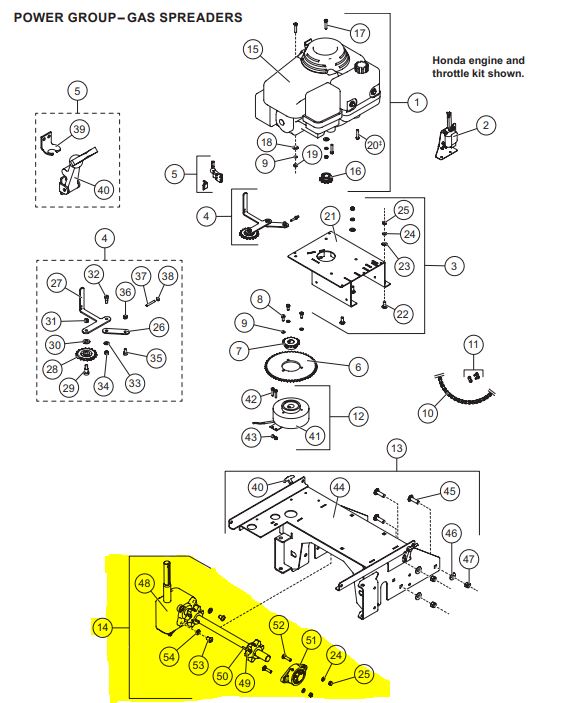

This comes with Gear Case 95567, Drive Sprocket 65909, Machine Key 95076, 2-Bolt Bearing Flange 94536 and Hardware Bag 99118.
