99798 SnowEx Spreader Transmission Worm Gear 80:1 VX-1500 VX-2200
A New # 99798 SnowEx Transmission.
A New # 99798 SnowEx Transmission. ( If you are replacing the older Black Transmission you will also need the 83723 bracket kit. )

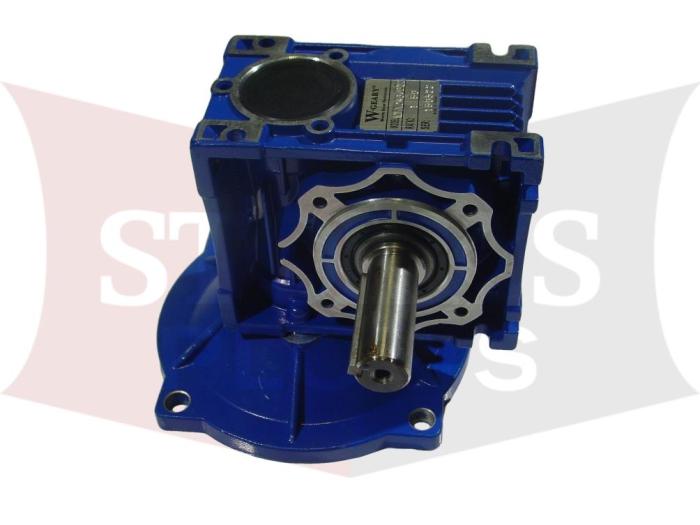

This is an 80:1 speed reducer transmission used in combination with motors # D6825 and D5522. The unit is marked W-geary, Worm Gear Reducers, Model MRVC40-DZ2. The motor side has 5/8" hole with a key slot. The drive side shaft is 3/4" with a key as well. This comes with some hardware D6854 bolts, T15016 lock nuts, D6452 Bolts, D6873 Key Stock, 10923 Transmission, and 30456 motor plate.
This is not for the Vx-2200HO ( the High out put units use a differant gear box 99799 / D5341 )
There are Multiple Part Numbers for this Transmission
10923 Trans only
83267 Comes with 4 bolts
99798 Comes with small hardware bag
D6826-1 Comes with hardware and 2 bracket
It is used on the spreaders below:
VX-1500
ZX-2200
Part type | Gear boxes |
---|---|
Spreader Brand | Snowex |
Spreader Drive Type | Electric |
Spreader Style | Inbed |
