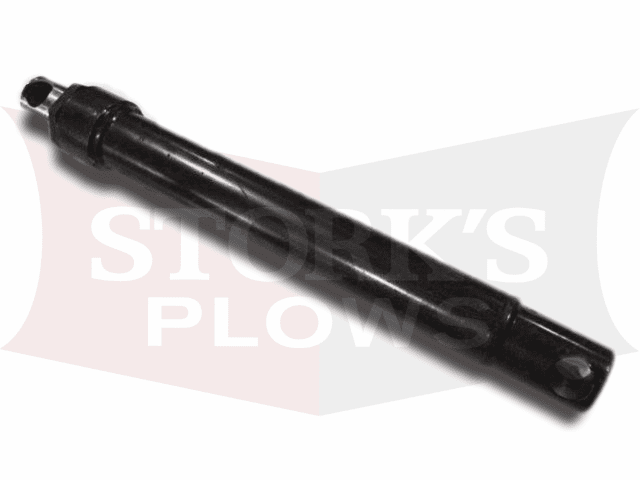

A5166 Genuine Fisher 2x16" MC Angling Cylinder Minute Mount Pipe Thread

This is a New Factory Fisher Cylinder - not aftermarket. This is for the big MC series plow. It is a 2x16" angling cylinder.

This has 1-1/4" pin holes.

The cylinder is a 2"x16". The 16" is the movement of the cylinder.

In the closed position, it measures 23.5" from center to center on the hole.

From end to end, the tank including the nut is 22.5".

This has the normal 1/4" pipe thread hole for a hose on the side of the cylinder opposite the pin hole.
