Aftermarket Joystick Controller Meyer Diamond Control 22154 22092

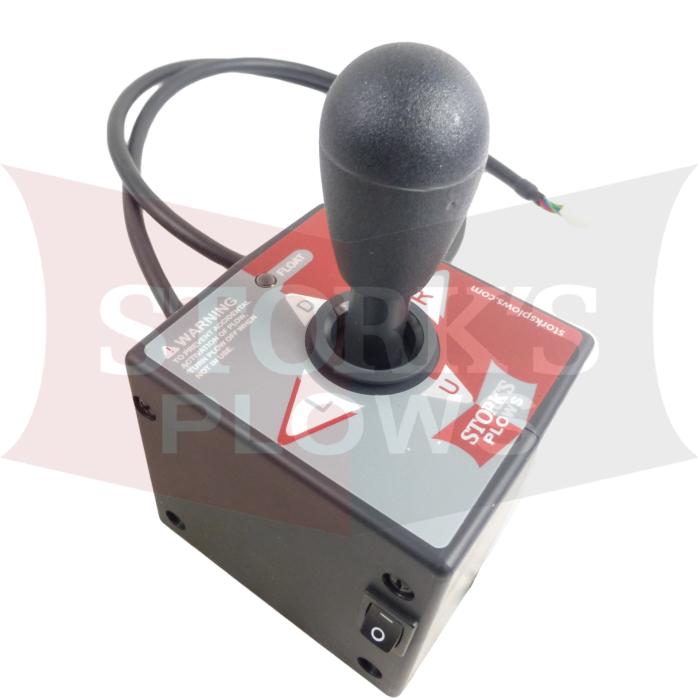

A Quality Aftermarket Joystick Control made for Meyer and Diamond plows with the 6 pin plug. This is a direct plug-in to the harness for the touchpad. It has the 6-pin white plug as you see in the picture. This replaced the 22154 touchpad.

*NOTE: If you have Slick Stik harness, we now sell an adapter so you do not have to change your harness in related products.

Straight Blade Aftermarket Control Instructions.

Aftermarket Control User Instructions.

The early touchpads had a black round plug with 6 pins. This was soon replaced with this white plastic plug.  If you have the old harness with the round black rubber plug, you can buy this adapter 15766 to mate to the new control. If you do not have the correct harness, you need 15764. If you have toggle switches or a joystick and you want to switch over, you need a new harness but, if you want to tackle cutting the harness and adding the touchpad plug, you can cut and wire this adapter in adapter 15766.

• • 4-way operation.
  • Automatic Shut-Off when not in use, approximately 22 minutes.
  • Soft stop feature: The plow blade will coast to a soft stop (left or right) resulting in smoother operation and decreased wear on the plow's hydraulic system.
  • Optional double tap feature: Express Up/Down.
  • On/Off switch can be used as an Emergency Stop when required.
  • All control functions will time out (shut-off) after a period of time. This helps reduce wear on the pump motor and prevent unnecessary battery drain. Up-button times out after 2.6 seconds, while left and right functions time out after 3 seconds.
  • Flexible straight cord.
  • Instructions come with each control.
  • Designed and Manufactured in the U.S.A.
