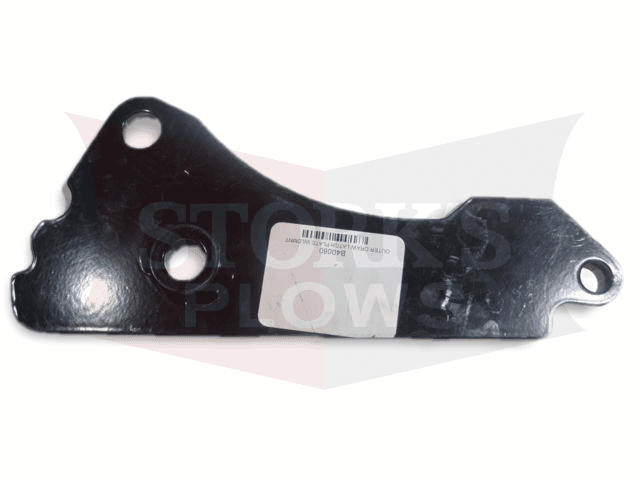

B40080 Blizzard Outer Draw Latch Plate 810, 8611, 810PP

This is for one side of the outer draw latch plate for the Power Hitch 1 Blizzard Power Plow (part # B40080). It is part of Draw Latch Assembly B40109.

This fits the 810PP, 8611LP and 8611PP.  The full size Power Hitch 1 plows only. This plate is 1/2" thick. Overall length is 15-1/4" long. There is a 3/8" hole in the back and both front holes are 1".

The other side is B40081. Use the list below to find other associated parts you may need. We do sell every piece separately.

This is the assembly. It is made up of the parts below:

43 B40080 Outer Draw Latch DS

44 B40110 1x 6-1/2 (13/16 cotter hole) Draw Latch Pin

45 B61363 3/16x2-1/2 Cotter Pins

46 B61004 3/4 x 4.5 Hex bolt

47 B40074 Inner Draw Latch Plates

48 B40070 1x4-21/32 Draw Latch Mount Pin

49 B40114 Draw Latch Arm

50 B40123 Draw Latch Finger

51 B40042 3/4x2-1/2 Inner Draw Latch Plate Pin

52 B40093 1-1/4 OD 1-1/16 ID x1-1/2 Bushing

53 B40081 Outer Draw Latch PS

54 B50071 3/4 x 3-41/64 Clevis Pin

55 B40116 1 OD 25/32 ID x 5/8 Spacer

56 B61006 3/4-10 Lock Nut
