B60255 Factory Blizzard Plow 3x4-5/8" Lift Ram Cylinder HD, PP, 810 810-1 SW PH1

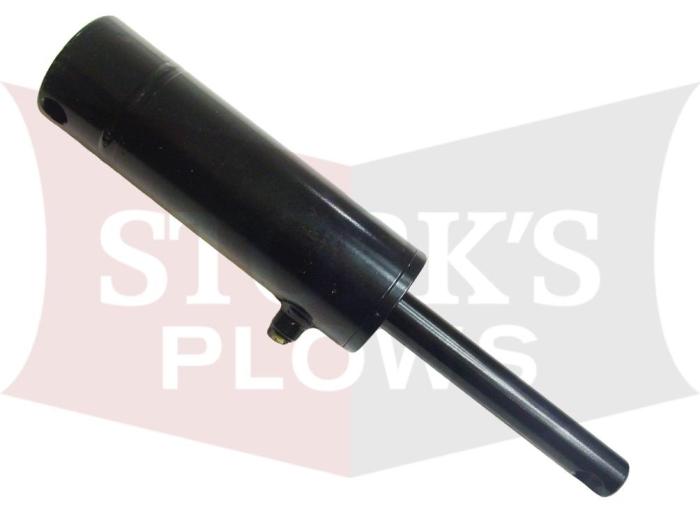

A New Blizzard Lift Cylinder # B60255.

You can find related parts and breakdowns in this document.

Here is a new Factory Blizzard Lift Cylinder (#B60255 or 60255.)  They had many different cylinders and we try to keep them all in stock, so make sure this is the one you need. This one is the lift cylinder for 2003 and later 760HD, 800HD, 860HD, 860SW and 810 Power Plow. It is a dual-acting cylinder that mounts and dismounts the plow to the truck mount. This is considered a 3x4-5/8. If they are pitted, they should be replaced since those pits take in water and will cause freeze-up in the pump. Get some Blizzard fluid while you are at it.

If you have a factory B60255 and just need the seal kit, that part # is B60371.

If you are still unsure, here is some more information on this cylinder: it is dual-acting, it has a 3/4" bolt hole in either end, the chrome cylinder is 1-1/4" across, end to end on the black housing is 10 3/4" and it measures 3-3/8" across the bottom of the black housing.
