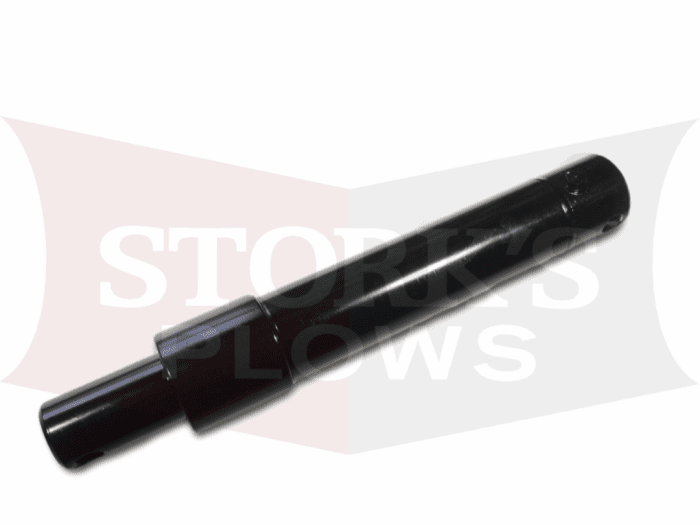

B60324 Blizzard Angling Cylinder Skid Steer 8611SS 8611TR

Here is a New Factory Blizzard Cylinder B60324. This cylinder was only used on the skid steer plows, the 8611SS and the 8611TR.

If they are pitted, they should be replaced, since those pits take in water and will cause freeze-up in the pump. Get some Blizzard fluid while you are at it.

If you need the pins to attach this cylinder they are 95739.

If you need the seal kit, that part # is B60366.

If you are unsure, here is some more info on this cylinder.

It has a 3/4" bolt hole in either end.

Closed length from center of hole to center of hole is 17 1/4".

Closed length from end to end is 18 3/4" long.

The chrome is 2" across.  the base is 2.5" across.

The port is on the side of the tank.
