B62236 Blizzard Power Hitch 1 Coil Solenoid 12V Pump Parts Speed Wing 760SW 860SW

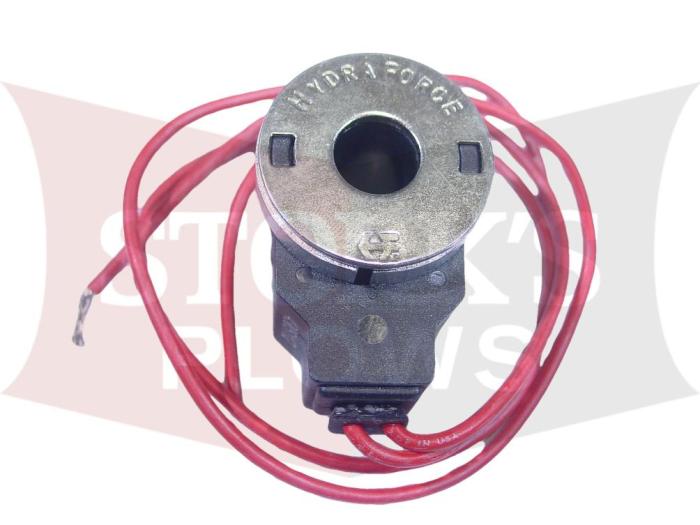

Here is a New Blizzard Pump Coil. This is part # B62236.  This is for the Power Hitch 1 760SW and 860SW Speed Wing plows. This coil has a metal jacket on it.

Some of these say: "Hydraforce 12 vdc 19 14 PC 4305112."
1-7/16" tall 1 3/8" round 1/2" stem hole

This is the smaller coil on the pump, if you need the larger one that is B62237.

It is the located on S3,S4 on the valve B60460 and S5 on the valve B60462.

This has two wires coming out of the coil.

There is also a kit available that would give you all coils connected to the plug coil assembly is B62246.

**FOR REFERENCE ONLY MAY VARY DEPENDING OF YEAR OF PLOW

SW760 & SW860 Parts Breakdown

Part number 21 on diagram
