CM004P Hydraulic Spreader Spinner Motor Pump Meyer Buyers Flink Swenson

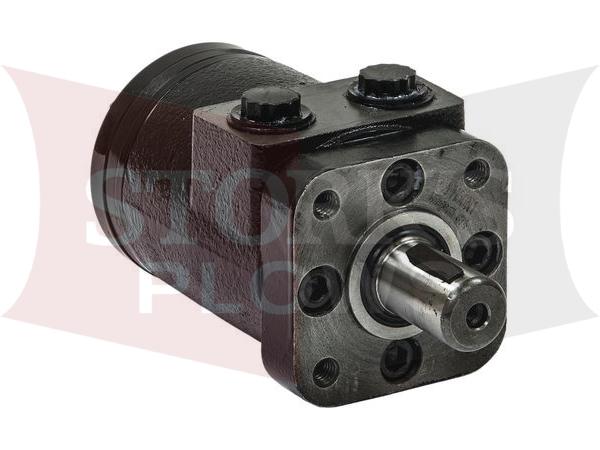

Here is a New Hydraulic Spinner Motor # CM004P.

This is used on a number of spreaders to run the spinner. It is 4 bolt mounting. 3.17 CIRP.  this has 1/2" NPT fittings.

It is said to replace the motors listed below:

Char-Lynn 101-1001
TRW Ross MG-03-13-10
Prince ADM504RP
Orbmark HD104W4FSWP
White RS-03-0101
Flink 462-1
Meyer 60324
Swenson 04101-035-00

Used on these Buyers Spreaders:  92420A, 92420SSA, 92421SSA, 92425SSA, 92426SSA, 92430A, 92430SSA

MOTOR SPECS:

• Displacement cm3/r  43 [2.8 Cubic inches]
• Max Speed at Continuous Flow: (969 RPM)
• Flow LPM

  • Continuous: 45 [ 12 Gallons per min.]
  • Intermittent: 53[ 14 Gallons per min.]
• Torque LPM

  • Continuous: 73 [ 650 inch lbs ]
  • Intermittent**: 99 [ 876 inch lbs ]
• Min. Starting Torque Nm

  • Cont. Pressure: 59  [ 520 Inch lbs ]
  • Int. Pressure: 81 [ 720 Inch lbs ]
• Pressure Δ Bar
• Continuous*: 124 [ 1800 PSI ]
• Intermittent*(**): 165 [ 2400 PSI ]
• - 4-Bolt Mount/NPT Threads And 2.8 Cubic Inches Displacement

  - Designed to be economical, efficient, compact and powerful.

  - Ideal for powering medium-duty applications such as compressors, augers, winches, cranes, and spreaders.

  - Industry-proven spool valve design.

  - State-of-the-art gerotors.

  - Excellent at providing a high degree of start-up torque or the right mixture of torque and flow rate.
