D5707 SnowEx SP-2200 SP-2400 Spreader Spinner Drive Assembly
SnowEx Spinner Drive Assembly # D5707.
SnowEx Spinner Drive Assembly # D5707.

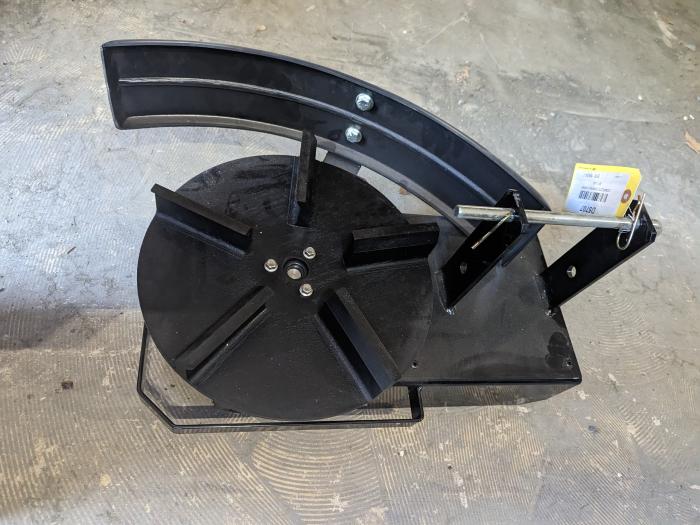

This is the complete spinner drive assembly for the SnowEx SP-2200 and SP-2400 spreaders. This is fully assembled. These are the Under tailgate as well as the tailgate replacement spreaders that Snowex offered.
We also sell many other parts for these spreaders.
This assembly includes the following parts:
D6854 1/4 x 1" HWH Serrated
D6823 Urethane Spinner
D5718 Spinner Mounting Hub
D6133 5/16 x 1/2" Hex Bolt
D6327 Spinner Deflector
D4121 3/8"-16 x 1" HHCS
D6131 1/4 x 1/2" HWH Serrated TCS
D6877 3/4 Self Driller HWH
DS721 Spinner Drive Enclosure
D4135 5/16 Hair Pin Clip
D5739 Spinner Drive Pin
DS741 Long Leveler Rod
D5740 Short Leveler Rod
D6447 5/16"x 1" Self Driller
D5738 Leveler Mount Bracket
D5722 Spinner Motor
D6232 Motor Coupler
D5723 Spinner Transmission
D5715 Spinner Motor Cover
D6172 5/8" Serrated Flange Bolt
D4124 3/8" Locknut
D4125 3/8" Flat Washer
You can find the SP-2200 manual here.
The SP-2400 manual is here.
Part type | Chutes |
---|---|
Spreader Brand | Snowex |
Spreader Style | Dump Tailgate Replacement |
Spreader Feed type | Auger |
