D6565 SnowEx SP-3000 SP-6000 SP-8000 Spreader Chute Assembly

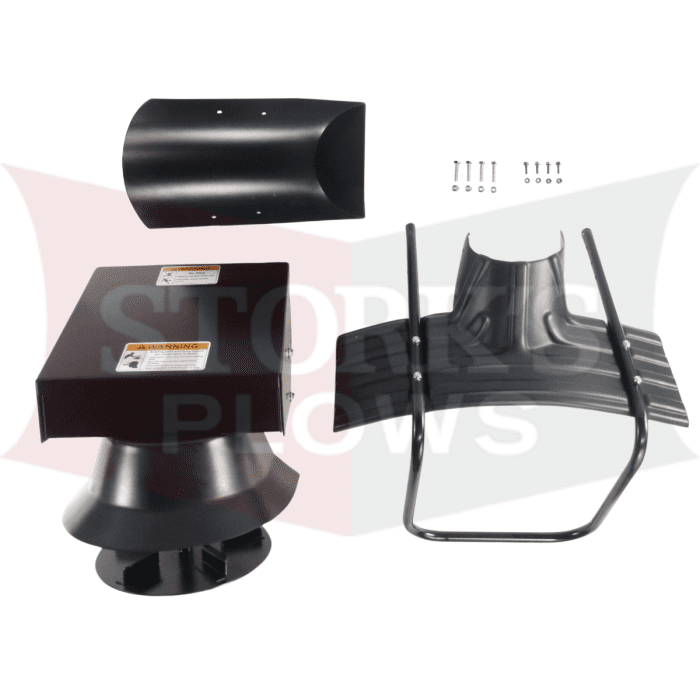

SnowEx Chute Assembly # D6565.

This is the chute assembly for a SnowEx SP-3000, SP-6000 and SP-8000. This is fully assembled. We also have all the other parts for these spreaders if you need more than the chute assembly.

For related parts and diagrams, check this document.

This includes the following parts:

D6452 3/8" - 16 x 1" Hex Balt
D4289 1/4" Lock Nut
D6107 Transmission
D6109 Motor Cover
D6467 Plastic Push Fastener
D6854 1/4" - 20x 1” Stainless Hex Bolt Flange Head
D6133 5/16" - 18 x 1/2 Hex Bolt
D6131 1/4"-20 x 1/2 SS Flange Bolt
D6172 #10 - 32 x 5/8" Serrated Flange Bolt
D 6462 5/16 - 18 x 1-1/2" Bolt
D6138 5/16" Lock Nut
D6162 24" Power Cable
D6232 Motor Drive Coupler
D6106 Spinner Motor
D6516 12" Spinner w/Extended Shaft
D6517 Chute
D6564 Deflector
D6575 Drive Enclosure Shroud
D6541 Spinner Drive Enclosure
D6543 Tubular Spinner Guard
D6563 Pin
D4135 Hair Pin Clip
D6165 5/16" Flat Washer
