Stork's Plows is not a dealer of or an experienced installer of Smith Spreaders. This information is for your reference only. There is some overlap with other spreaders, but our technical assistance will be limited.

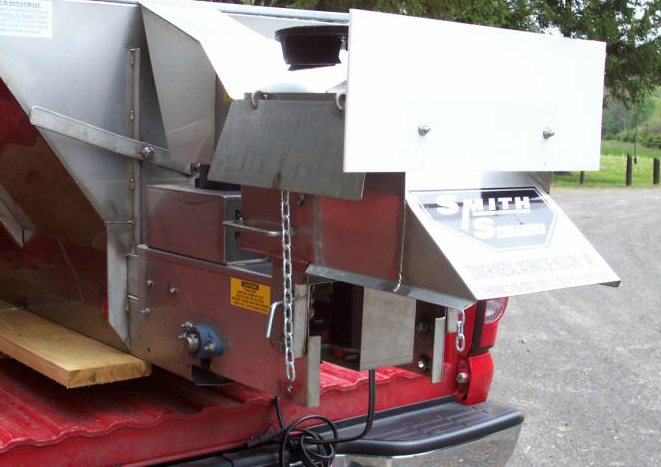

The Series IV spreaders are all 50.5" wide and 40" tall. Standard features include a top screen and inverted vee, an adjustable 12"- 24" flip up chute assembly and all the components needed for vehicle installation.

The Series IV spreaders come in the following models:
68" Electric (1.25 cubic yard)
68" Hydraulic (1.25 cubic yard)
96" Electric (2 cubic yard)
96" Hydraulic (2 cubic yard)
96" Electric (2.5 cubic yard)
96" Hydraulic (2.5 cubic yard)
108" Electric (2.25 cubic yard)
108" Hydraulic (2.25 cubic yard)
120" Electric (2.5 cubic yard)
120" Hydraulic (2.5 cubic yard)

Note: The 96" spreaders can contain 3 cubic yards of spreading material if the optional 12" top extension is installed ( # 140-48 ). Likewise, the (# 140-48-9 ) 12" extension for the 108" models will increase the volume to 3.5 cubic yards and the (# 140-48-10 ) extension for the 120" models will increase volume to 4 cubic yards.

Other options for the Series IV spreaders include the following:
# 500-200 – Speed Control (conveyor and spinner)
# 140-100 – Speed Control (single motor)
# 160-6-SS – 6" spill shield
# 160-12-SS – 12" spill shield

Specifications
