Factory Blizzard B60090 Short Blizzard Early 810 PP 810 SS Wing Cylinder
New Blizzard cylinder 60090.
-
$200.00 -
$35.00
Once these are sold out they are no longer available and we are unaware of a replacement.

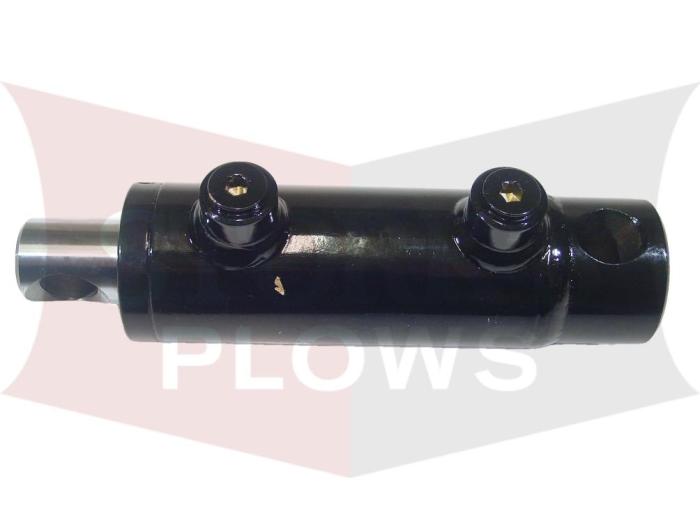

Here is a New Factory Blizzard B60090 Early Style for 810 and 810SS Wing Cylinder with 8 hoses. This cylinder is used in conjuction with 60031 cylinder. First 60031 extends the wing box, then this cylinder flips forward the wing.

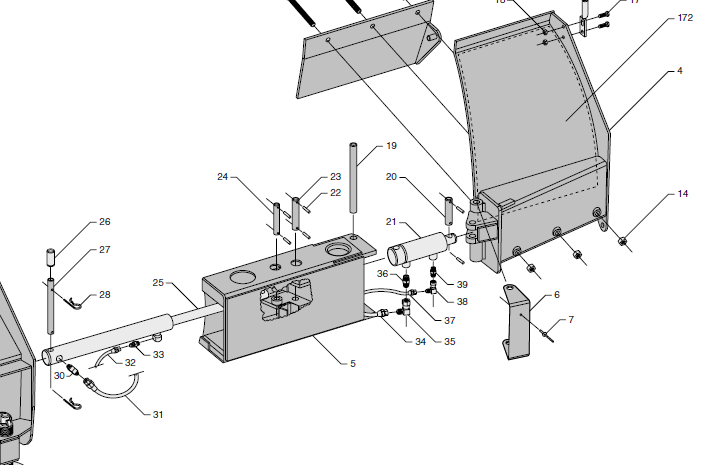

This is the short one #21 in the diagram below
They had many different cylinders and we try to keep them all in stock, so make sure this is the one you need. It is a dual-acting cylinder
If you are still unsure, here is more information on this cylinder: it has a 3/4" bolt hole in both ends, the chrome cylinder is 1 1/8" across, end to end on the black housing is 6-7//8" total end to end closed is 8.5", and it measures 2" across the bottom of the black housing.
