Genuine Diamond 1.5x10 Power Angling Cylinder 817000 020

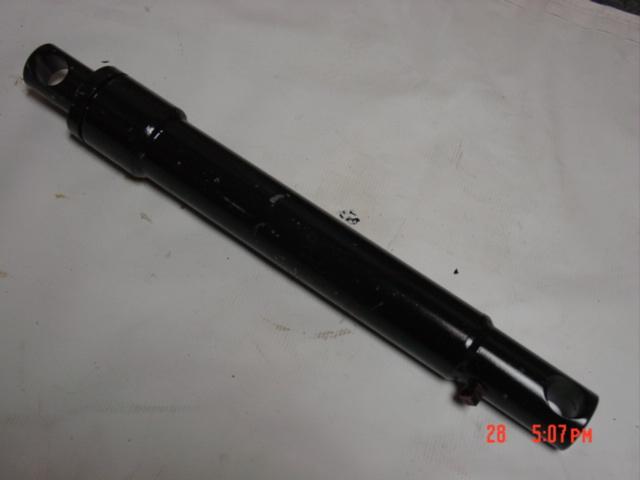

Here is a new 1.5x10" Genuine Diamond Power Angling Cylinder (part # 817000 020.) This was used on all the Diamond blades with 1" pin holes. We have these in both black and yellow. They switched to yellow a few years back, so please specify if you have a preference. These are often all pitted and at that point they should be replaced as those pits take in water and will cause freeze-up in the pump. So get a new set on there and flush all the fluid out. We have the hoses listed here for the swap.

Here are some measurements to make sure this is what you need:

The pin holes are 1".

The port is 1/4 pipe thread and comes out the side of the cylinder.

In the closed position, the center of hole to center of hole is 17-1/4".

Closed length end to end measures 18-3/4".

This is an OEM cylinder, but the aftermarket # on these cylinders is 1304100.
