Genuine Diamond V Plow Dual Acting Angling Cylinder 817000 080
These are for the old Diamond V plows. There were two styles - one had spring return cylinders and the other had dual acting cylinders, which is what we have here.

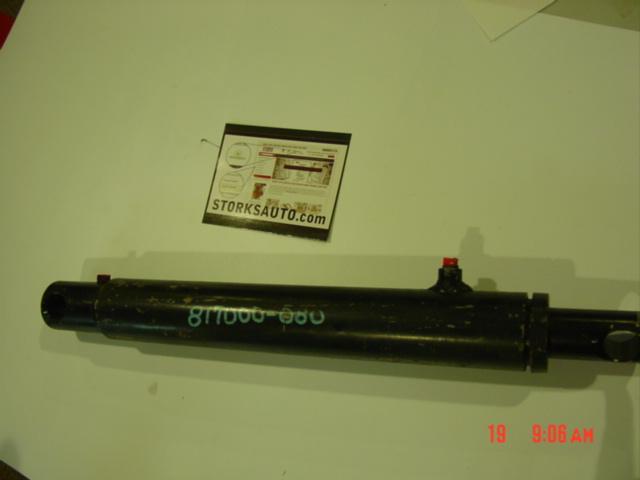

This is a New Genuine Diamond Power Angling Cylinder (part #817000 080). This has a 1/4" pipe thread port in the front and back of the tank.
These have been discontinued and you will not find them anywhere else.
These are for the old Diamond V plows. There were two styles. One had spring return cylinders. The other had dual acting cylinders, which is what we have here.
This is a New Genuine Diamond Power Angling Cylinder, part #817000 080. This has a 1/4" pipe thread port in the front and back of the tank.
Â
Below are some measurements to make sure this is what you need:
The pin holes are 1", the port is 1/4" pipe thread and comes out the side of the cylinder.
In the closed position, the center of hole to center of hole is 20".Â
Closed end to end measures 21-5/8".
The rod is 1.5". The base of the tank measures 2".
This is an OEM cylinder.
