Blizzard has two versions of this wing cylinder. Make sure this is the one you have. This is the early version B60347, the later version is 43803. It has a groove around the base. This one was used from 02-current.

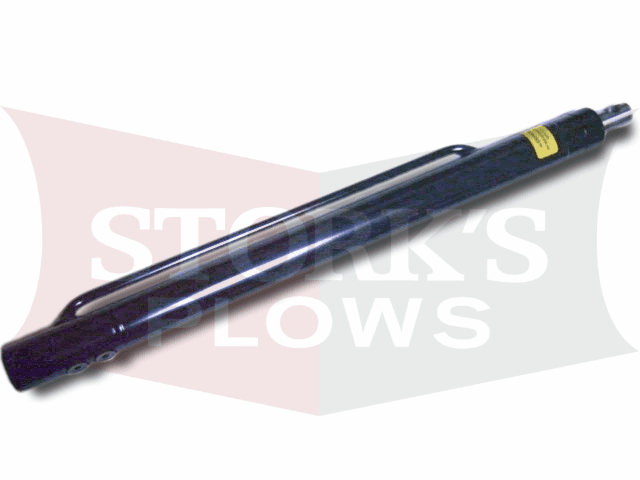

This is a new Aftermarket Blizzard Slide Box Wing Cylinder (part # B60347 or 60347.) The aftermarket # is 1304646. They had more than one slide box cylinder. This is the one with two hoses which fits 810, 8100, 8100PP, 810SS, 810PP and 810TR. This goes into the plow to slide the power wings in and out. It is a dual-acting cylinder, so power in power out. It is considered a 1-1/2x13-15/16. If they are pitted, they should be replaced. Those pits take in water and will cause freeze-up in the pump. But if you are looking for this, you probably hit something and its bent. Just a guess.
If you have a factory B60347 and all you need is a seal kit that part # is B60364.
Also get some Blizzard fluid while you are at it.
If you are unsure, here is more information on this cylinder: it is dual-acting, has a 5/8" bolt hole in either end, the chrome cylinder is 1" across, end to end on the black housing is 26-1/4", end to end bolt hole is 26.5 center to center, it measures 1-3/4 across the bottom of the black housing and this also has a tube run on the outside of the cylinder.
