New Chevy GMC Truck 88-2000 4x4 Western Unimount 62330 1585

Special Price $1,200.00 Regular Price $1,441.29
Out of stock
SKU
62330

A New Original Western Unimount for a 1988-1998 Chevy GMC 4x4.

Frequently Bought Together
Total price

As of 2022 Western has Discontinued some of the peices to make this mount. Once this is gone you will no longer be able to get one and will have to use the 67865 ultramount and and 27170 conversion kit.

A New Original Western Unimount for a 1988-1998 Chevy GMC 4x4. Some of the 2500 and 3500 trucks used this body as late as 2000. For all trucks with the 88-98 body. The mount # is 62330 and model 1585. This does not fit Suburbans and Blazers before model year ‘91. There is no hardware included - just the mount pieces. All hardware, lower pins and link arm kits are also available in our store. The 2WD Chevy uses a different mount. We have them listed too, but this one will not fit. If you only need part of this mount, let us know. We can sell you any piece.

Here is a link to the bolt kit hardware bag we put together for this mount.

Here is a link to the parts list and installation instructions for the Unimount  62330.

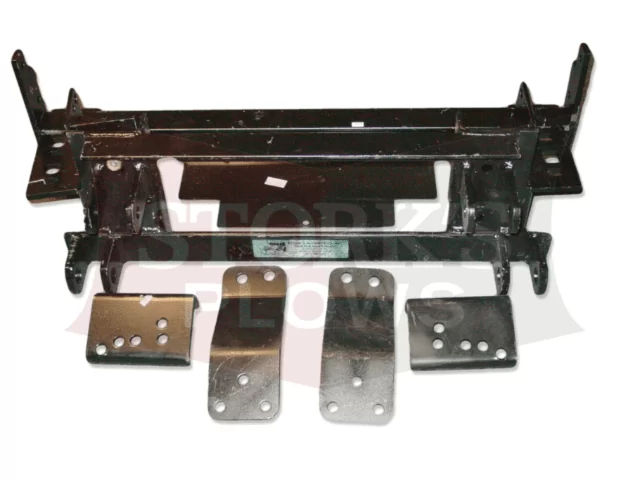

Includes parts: 62487, 62488, 62295, 62310, 62480, 62482, 62481, 62483 and 60810.

If you also need wiring, this range of trucks had many headlight options: 2B , HB3-HB4 and LF/UF.

For 2B single glass sealed beams with DRL, you need harness 61556 or kit 61555. Without DRL, you need 61546 harness or 61545 kit.

For HB-3/HB-4 Plastic Lens with replaceable bulbs with DRL, you need harness 61586 or kit 61585. Without DRL, you need 61716 harness or 61515 kit.

For LF/UF Glass sealed beamd with DRL, you need harness 61581 Modified or kit 61560. Without DRL, you need harness 61581 or kit 61580.

88 Chevy unimount

More Information
Truck Manufacturer Chevy/GMC
