New Factory Meyer Diamond Pistol Grip Control 23047 EZ1 S.O.S.

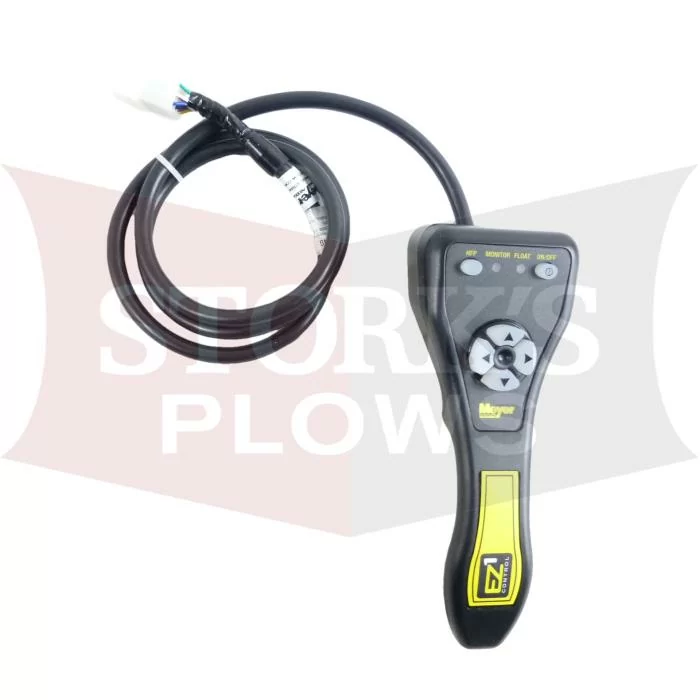

This is a New # 23047 Straight Blade Meyer Pistol Grip Control For the new standard operating system plows.

This control has buttons for HFP (Hands Free Plowing) with the automatic raise and lower feature, On/Off, and arrows for up, down, left and right. The plug ends has 12 pins.

Meyer’s pistol grip controller features automatic raise mode (ARM) and automatic lower mode (ALM). This reduces effort and increases performance and safety. The ARM mode automatically raises the plow when the operator shifts the vehicle in reverse. The ALM mode automatically lowers the plow when the operator shifts the vehicle out of reverse.

Here is a link to the Instructions for this controller.

If there is an error, the controller will flash a code. They are imprinted on the back of the controller or you can find them below:

Continuous Light: Motor solenoid
1 Light Flash:    Check red coil wire
2 Light Flashes: Check black coil wire
3 Light Flashes: Check green coil wire
4 Light Flashes: Check yellow coil wire
5 Light Flashes: Check light blue coil wire
6 Light Flashes: Check purple coil wire
