New Factory Meyer Diamond Wireless Pistol Grip Control 23010 EZ1 V-70, V-68, E-70, E-72, E-58H

This is a New # 23010 Meyer Wireless Pistol Grip Control.

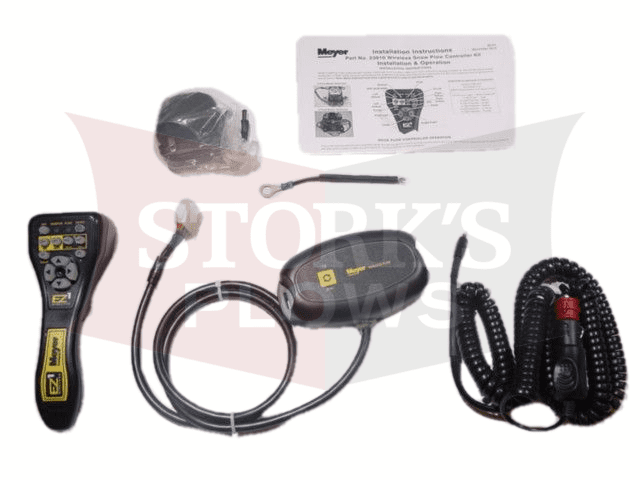

This is an entire kit coming with the wireless receiver, a harness to plug into the cigarette lighter, a wall charger, one solenoid cable and the wireless controller itself. It is labeled EZ1.

Meyer’s pistol grip controller features automatic raise mode (ARM) and automatic lower mode (ALM). This reduces effort and increases performance and safety, The ARM mode automatically raises the plow when the operator shifts the vehicle in reverse. The ALM mode automatically lowers the plow when the operator shifts the vehicle into drive.

If there is an error, the controller will flash a code. They are imprinted on the back of the controller or you can find them below:

Continuous Light: Motor solenoid
1 Light Flash: Check red coil wire
2 Light Flashes: Check black coil wire
3 Light Flashes: Check green coil wire
4 Light Flashes: Check yellow coil wire
5 Light Flashes: Check light blue coil wire
6 Light Flashes: Check purple coil wire

For the Installation Instructions, check this link.
