56330 Western 7631 Fisher Quill Assembly Hydraulic Pump

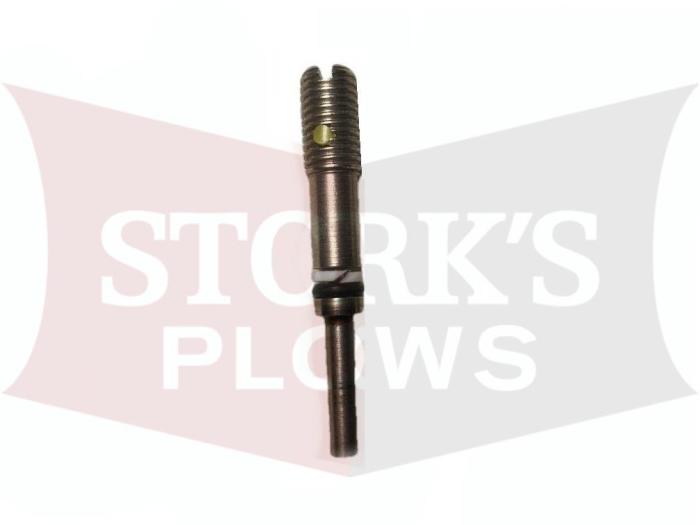

A New Quill Assembly for a Western or Fisher Electric Hydraulic Pump

This is for the Western Electric Unimount pumps also used as the Isarmatic pumps on the conventional setup. Fisher uses this on the MM pumps that are electric with the lift ram coming right out of the pump.

We try to stock all parts for these pumps so let us know what you need.

It is 1-7/8" long and includes 2 O-rings on the part.

This Quill Assembly has several part #s: Western 56330, Fisher 7631.

The Western part numbers for the O rings are : 25622(006) O-ring;56315(006) Back up O-ring(parbak split)

The Fisher part numbers for the Orings are : 2605(006);7633 Back up O-ring(parbak split)

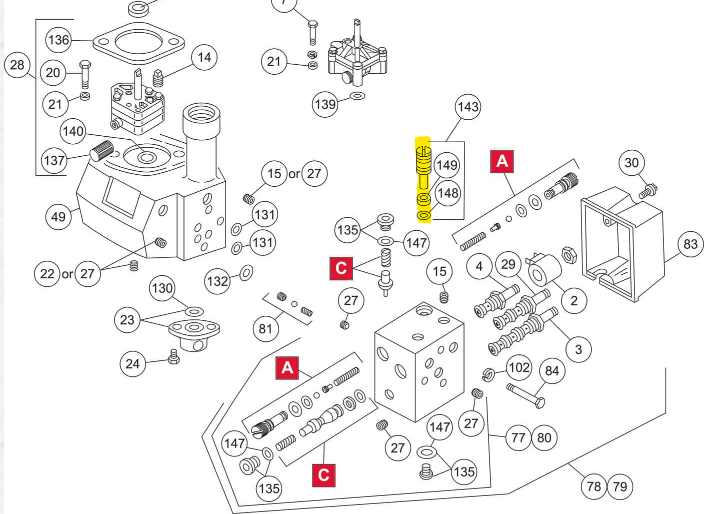

Part #143 on Diagram
