SnowEx 52465 Single Dial Controller w/ Bracket Tailgate Spreader SP-575X-1 SP-1075X-1

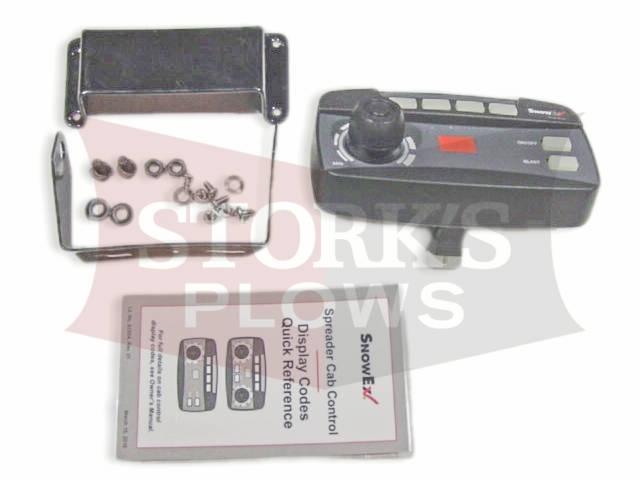

SnowEx Spreader Controller # 52465. This includes the Bracket 52345. If you just want the controller with no bracket, that is part # 52467. ( The back of the controller can say 52410 )
This control is used with the updated tailgate spreaders SP-575X-1 and SP-1075X-1. It has a knob to control the width of the material spread, as well as buttons for the vibrator, lights and two auxiliary outputs.
This plugs into control harness 69902.
* How to ID a 575? The original SP-575 used a metal encased controller, the later version was a SP-575X and they use a handheld pendant. The newest version is a 575X-1 and it uses the new dash mounted plastic Fleet Flex controller.
This has a 4 pin plug on the back and will not work on the non-1 spreaders.
Here is a link to the Instructions for this spreader.
If you are getting an error code, here is a link to the Instructions and tells you all of them.
Part type | Controls |
---|---|
Spreader Brand | Snowex |
Spreader Drive Type | Electric |
Spreader Style | Dump Tailgate Replacement |
Spreader Feed type | Auger |
