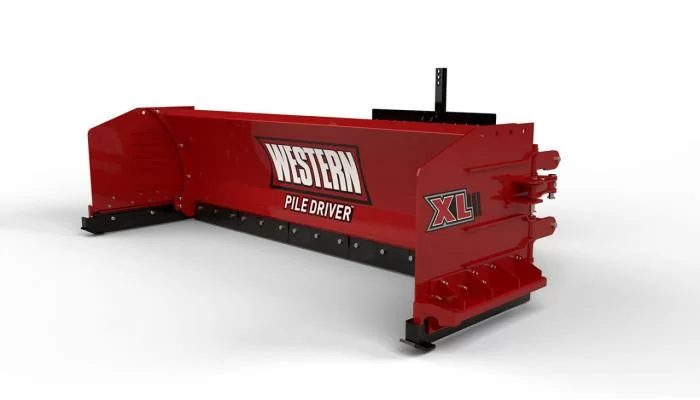

8'-14' x36" Western Pile Driver XL Box Hydraulic-Wing Trace Technology Tractor Loader Pusher Plows Box 31708-1

This is the All new to 2024 Ground Tracking Carbide edge pusher with Hydraulic wings. This is the Western Pile Driver XL. The Box 31708-1 is power angle and has a 8' center moldboard and is 14' when the 36" wings are out. This box is 36" tall and is also availabe in 30" tall as part # 31108.

Available in 7 sizes from 8' up to 16' + the 6' of wings.



This one weighs 2628 lbs. Recommended for a 40+ HP Tractor or 60+ HP loader or Backhoe with a max 10,000LB operating weight. The cutting edges are 3/4" High carbon steel with Carbide inserts, split into 24" pieces that move independently raising , oscelating and tripping allowing you to get a cleaner pass on uneven ground. The Angle operate off the machine Hydraulics and a 3 way Switch to move the wings. The wings move a full 180 Degree's front and back. The wings have the same live edge to give a good clean scrape.



Each Box will require a hitch to match the machine, a Hose kit and the harness. The drop downs will be added as you put it in the cart.



Compatible Skid Steers - Bobcat S850, GEHL V420, John Deere 332G, Manitou 4200V



Compatible Wheel Loaders - CAT 906, John Deere 184 G-Tier, Volvo L25H, CASE 21F, Wacker 8085, New Holland W50C, JCB 407, Bobcat L85



These are the smallest machines suggested for use with this pusher box.
