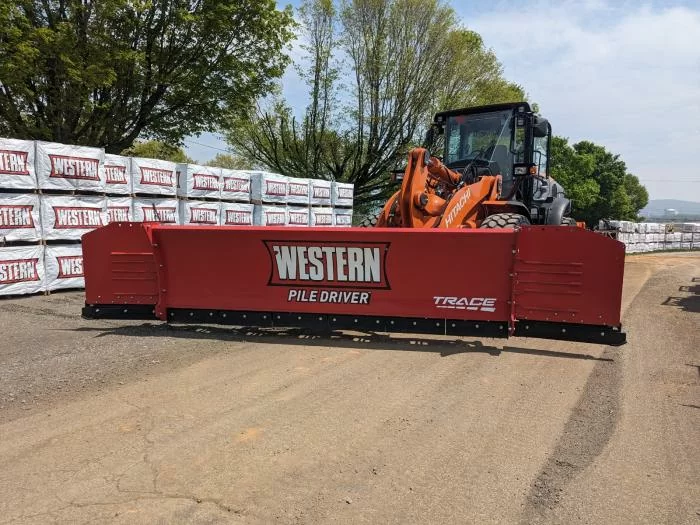

12'-18' Western Hydraulic-Wing Pile Driver XL 42" tall Trace Technology Wheel Loader Pusher Plows Box 31712

This is the All new to 2024 Ground Tracking Carbide edge pusher with Hydraulic wings. This is the Pile Driver XL. The Box 31712 is power angle and has a 12' center and is 18' when the 36" wings are out. Available in 7 sizes from 8' up to 16' + the 6' of wings. This is the 12' wide 42" tall,

This one weighs 3197 lbs. Recommended for a 100+ HP machine with a max 25000LB operating weight. The cutting edges are 3/4" High carbon steel with Carbide inserts, split into 24" pieces that move independently raising , oscelating and tripping allowing you to get a cleaner pass on uneven ground. The Angle operate off the machine Hydraulics and a 3 way Switch to move the wings. The wings move a full 180 Degree's front and back. The wings have the same live edge to give a good clean scrape.



Each Box will require a hitch to match the machine, a Hose kit and the harness. The drop downs will be added as you put it in the cart.



Compatible Wheel Loaders - CAT 926M, John Deere 444 P-Tier, Volvo L60H, Komatsu WA200-8, CASE 621G, Hyundai HL930A, JCB 427, Develon DL200-7



These are the smalles machines suggested for use with this pusher box.
