Meyer Diamond Adapter 22717 From Touchpad To Pistol Grip Control 22690

This is the adapter needed to install the newest of the Meyer controls - the Genuine Meyer Pistol Grip Handheld 22690. This takes the 12 way plug and adapts it to the 6 way harness used with the older touchpad. If you need the harness, too, the part # is 15764.

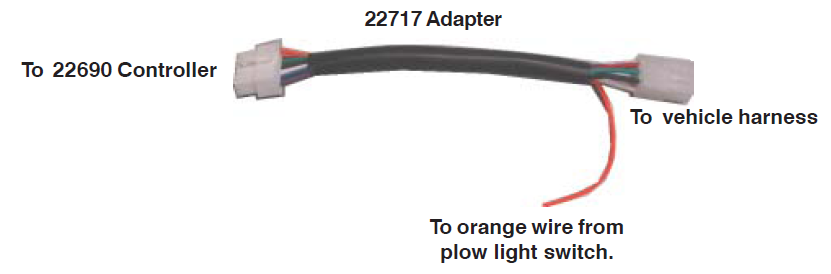

The 22717 control adapter shown below is only needed when replacing a 22154 Touchpad. The orange wire of the adapter can be connected to the orange wire on the back of the plow light switch. The plow light switch could then be removed along with the black and red wires which were connected to the plow light switch. When the controller is turned on it will activate the snow plow lights. When the controller is turned off or removed from the harness, this will activate the vehicle headlights.

This will not adapt the Toggle switch or Joystick harness. You will need to use the 15764 touchpad harness.

22690 Meyer Control Instructions With 22717 Adapter.

22690X Pistol Grip Controller With ALM / ARM Instructions.
