05877 / 07968 Genuine Meyer 1.5x10 Power Angling Cylinder 07968 4 Hole SAE Port Cross Drilled 07620

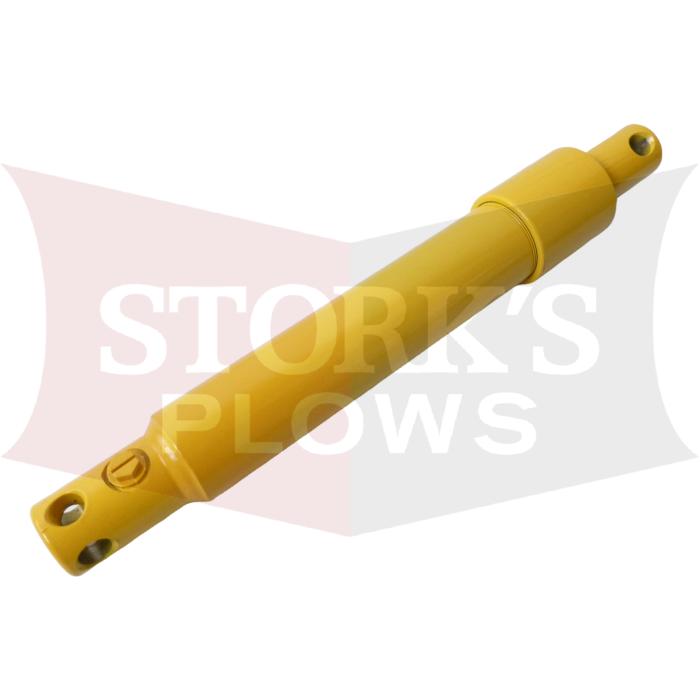

Here is a new Factory Meyer Cylinder #05877 (also known as 07968.) This is a 1.5x10" cross-drilled o ring fitting cylinder for a Meyer plow. These were used on all the newer style plows. Can be used on some of the older plows too. We also sell it as an aftermarket. That is listed under Related Products.  This is also available with the hose on it part # 07620.

Meyer has has a few cylinders, so make sure this is what you need.

The measuring system is often misunderstood. This is a 1.5x10" angling cylinder. The 1.5" is telling you the size of the rod, then the 10" is giving you the movement. So it would be the difference between full open (28") and full closed (18") or 10".

In the closed position, overall length is 17.5".

Center to center of the bolt holes closed is 16".

These have a 5/8" hole in either end of them. The tank end is cross-drilled, so you can direct the hose where it works best.

The port is an SAE o ring fitting.
