08685 Meyer Bolt Bag Classic Tube Mount 97-03 F-150 F-250LD Ford Truck 17108
Here is a New Meyer Bolt Bag for the Classic tube mount 99-03 F-150 and F-250LD Ford trucks. Not Super Duty.
Here is a New Meyer Bolt Bag for the Classic tube mount 99-03 F-150 and F-250LD Ford trucks. Not for the Super Duty trucks. The bolt bag is #08685. The mount it goes to is 17108. You also will need to purchase the two stud bars shown below as #4. If you have a 17108 mount, you should at least have the two stud bars and the two special J bolts.

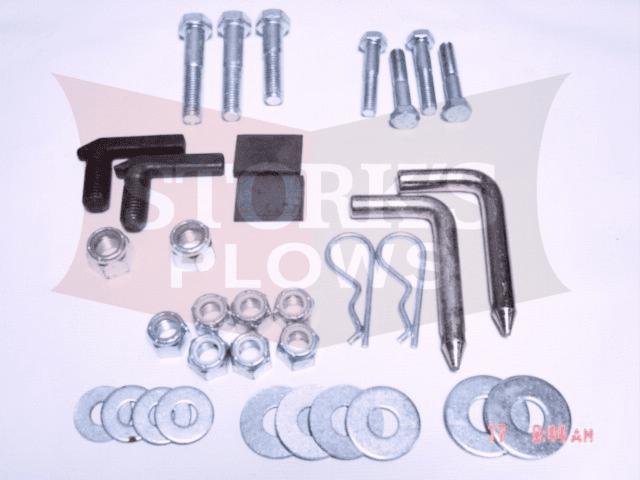

You will get:
2x Hinge Pins 11006 with 21984 Hair Pin Cotter
2x Special J Bolts 14595 with 2x 3/4" Lock Nuts
2x Spacer Stops 47170
7x 5/8 Lock Nuts
1x 5/8 x 2 3/4 Bolts
2x 5/8 x 3 1/4 Bolts
4x 1/2 Flat Washers
4x 5/8 Flat Washers
2x 3/4" Flat Washers
4x Bolts M12 x 1.75 x 60 MM
Here is a link to the parts and installation instructions for the 17108 mount.
Here is a list of trucks this mount will fit:
2004, FORD, F150 HERITAGE
2003, FORD, F150
2002, FORD, EXPEDITION
2002, FORD, F150
2001, FORD, EXPEDITION
2001, FORD, F150
2000, FORD, EXPEDITION
2000, FORD, F150
1999, FORD, EXPEDITION
1999, FORD, F150
1999, FORD, F250LD
1998, FORD, EXPEDITION
1998, FORD, F150
1998, FORD, F250LD
1997, FORD, EXPEDITION
1997, FORD, F150
1997, FORD, F250LD
Truck Manufacturer | Ford |
---|
