15382 New Aftermarket Meyer B Coil Raise Lift Solenoid Plow Pump E47 E57 E60 Diamond

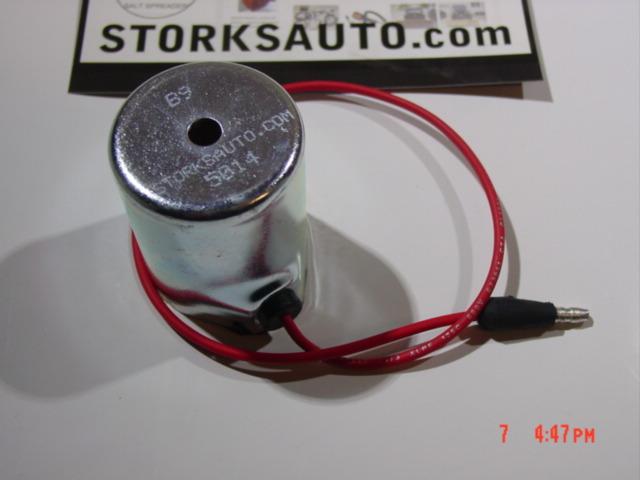

A new Aftermarket Meyer B Coil. This is the coil that raises the plow. When you run the pump motor and put 12 volts to this small red wire it will magnetize the coil, which opens the valve and causes the plow to raise. You can test these with something metal. When it has 12 volts and ground it should be magnetized. This is part #15382. It slides onto the B valve #15698 or #15380. You can also buy them in an assembly (part #15357). This coil is found on these pumps: E45, E47, E47H, E57, E57H, E60, E60H and E48.

If the wires are brittle, replace them (You do not want them breaking off in a snow storm). All you need is a 7/16" wrench to remove the nut. If it does not turn, heat it up or you will need a valve too.

Below we have links to the service manuals to walk you through the rebuild.

E-47, E-46 Complete Service Rebuild Manual.

E-47, E-46 Parts Break Down.

E-47H, E-46H Parts Break Down.

E-58, E68, E-78, E88 Shop/Repair Manual.

E-58, E-68, E-78, E-88 Parts Break Down.
