15382 New Factory Meyer B Coil Solenoid Plow Pump E46 E47 E57 E60

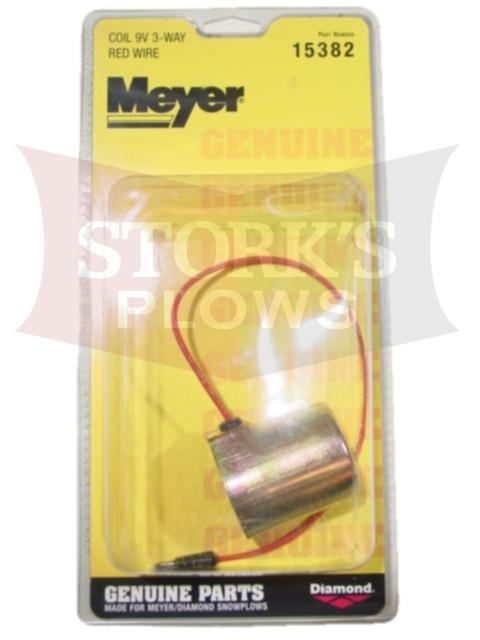

A New Genuine Meyer B Coil #15382.

This is the coil that raises the plow. When you run the pump motor and put 12 volts to this small red wire, it will magnetize the coil opening the valve and causing the plow to raise. You can test these with something metal. When it has 12 volts and ground it should be magnetized. The part # on this coil is 15382. It slides onto the B valve 15698 or 15380. Or else, you can buy them in an assembly (part # 15357). This coil is found on these pumps: E45, E47, E47H, E57, E57H, E60, E60H, E48.

If the wires are brittle, replace them. You do not want them breaking off in a snow storm. All you need is a 7/16" wrench to remove the nut. If it does not turn, heat it up or you will need a valve too.

Below we have links to the service manuals to walk you through the rebuild.

E-47, E-46 Complete Service Rebuild Manual.

E-47, E-46 Parts Break Down.

E-47H, E-46H Parts Break Down.

E-58, E68, E-78, E88 Shop/Repair Manual.

E-58, E-68, E-78, E-88 Parts Break Down.
