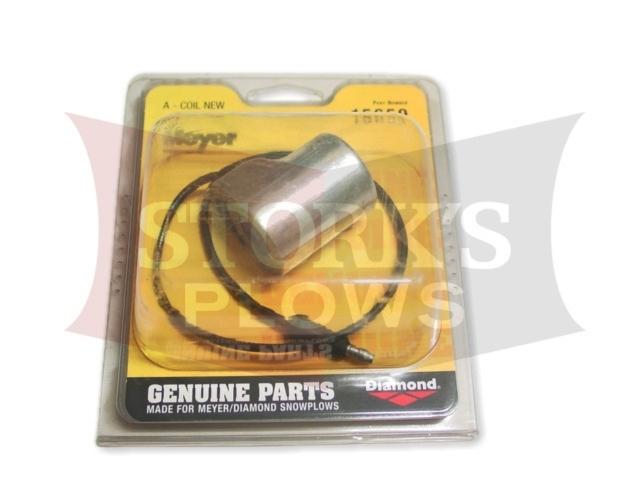

15659 New Factory Meyer A Coil Lower Plow Pump E47 E57 E60 Diamond

A New Factory Meyer A Coil # 15659. Meyer made two sizes of this A coil, so make sure it is the one you need.

This is for the later style (the larger one in the picture) that uses a nut that fits a 1/2 or 9-16" wrench. It is the coil that drops the plow. When you put 12 volts to this small black wire, it will magnetize the coil opening the valve and causing the plow to drop. You can test these with something metal. When it has 12 volts and ground, it should be magnetized. This slides on to the A valve # 15660 . You can also buy them as an assembly (# 15661 ).

If the wires are brittle, replace them because you do not want them breaking off in a snow storm.

This coil is found on these pumps: E45, E46, E47, E47H, E57, E57H, E50, E60, E60H, and E48. If you have the smaller coil, you need part # 15392.

Below we have links to the service manuals to walk you through the rebuild:

E-47, E-46 complete Service Rebuild Manual.

E-47, E-46 Parts Break Down.

E-47H, E-46H Parts Break Down.

E-58, E68, E-78, E88 Shop/Repair Manual.

E-58, E-68, E-78, E-88 Parts Break Down.
