17119 Meyer EZ Plus MDII Mount 1988-2001 Chevy GMC K1500 2500 3500 4x4

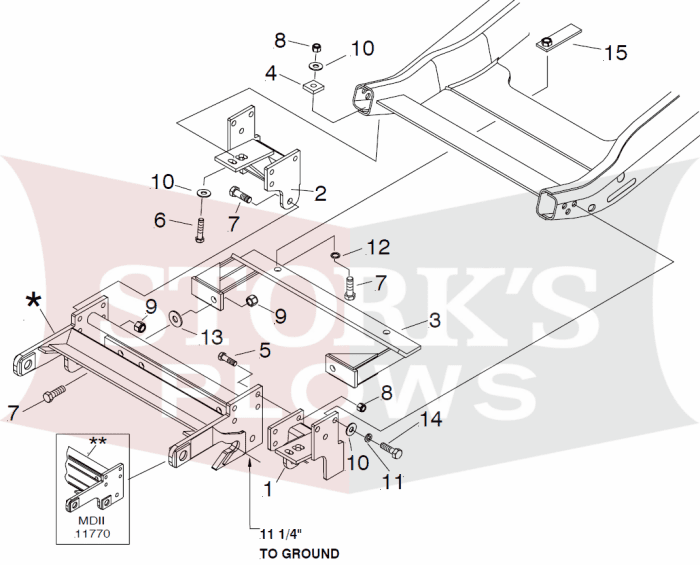

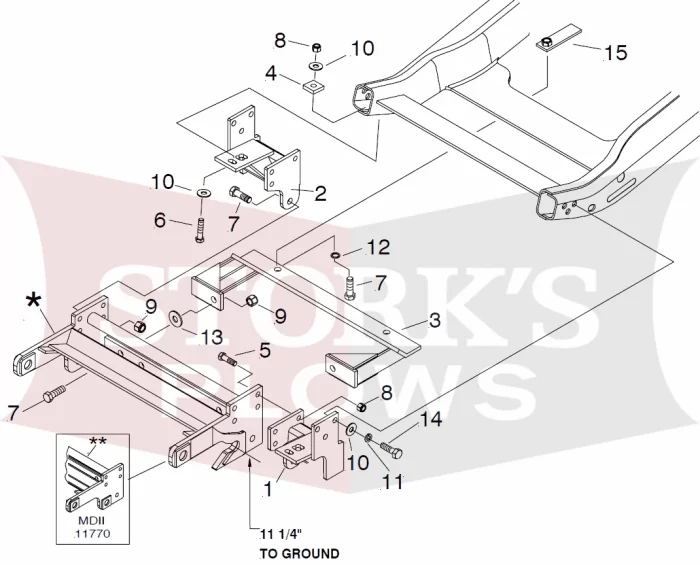

A New Meyer Mount (part # 17119.) This kit is the side brackets to mount an MDII or Plus plow on the '88-'98 body style for Chevy and GMC, but they did not follow only those years. Blazers and Suburbans did not use this mount until 1991 and some of the 2500 and 3500 trucks kept the old body up until 2001. This kit includes frame bracket 19029, frame bracket 19030, rear support 11785 and hardware kit 08733.

This is the complete undercarriage, but the clevis is sold separately here: MDII & Plus mount . MDII is the style with four blue handles and two yellow. The Plus only has two colored handles. Both work. You need the matching clevis to your lift frame.

Here is a link to the installation instruction for the 17119 Mount.

Meyer released supplementary information for this mount which can be viewed at this link.

These years of trucks had three different versions of headlights, so if you are swapping from one truck to another here is a list of the headlight adapters:

With HB-3/HB4 headlights (plastic lens with replaceable bulbs) Meyer 07104.

With 2B (a single glass sealed beam) Meyer 07180.

With LF/UF lights (dual glass sealed beam) Meyer 07103.

This is made to fit the trucks below:


2000, CHEVY/GMC, K2500 CLASSIC
2000, CHEVY/GMC, K3500 CLASSIC
2000, CHEVY/GMC, SUBURBAN K1500
2000, CHEVY/GMC, SUBURBAN K2500
2000, CHEVY/GMC, YUKON DENALI 1500

1999, CHEVY/GMC, K1500 CLASSIC
1999, CHEVY/GMC, K2500 CLASSIC
1999, CHEVY/GMC, K2500HD CLASSIC
1999, CHEVY/GMC, K3500 CLASSIC
1999, CHEVY/GMC, SUBURBAN K1500
1999, CHEVY/GMC, SUBURBAN K2500
1999, CHEVY/GMC, TAHOE/YUKON 1500

1998, CHEVY/GMC, BLAZER/JIMMY
1998, CHEVY/GMC, K1500 CLASSIC
1998, CHEVY/GMC, K1500 W/T CLASSIC
1998, CHEVY/GMC, K2500 CLASSIC
1998, CHEVY/GMC, K2500HD CLASSIC
1998, CHEVY/GMC, K3500 CLASSIC
1998, CHEVY/GMC, K3500 CLASSIC (St Frame)
1998, CHEVY/GMC, SUBURBAN K1500
1998, CHEVY/GMC, SUBURBAN K2500
1998, CHEVY/GMC, TAHOE/YUKON 1500

1997, CHEVY/GMC, K1500 CLASSIC
1997, CHEVY/GMC, K1500 W/T CLASSIC
1997, CHEVY/GMC, K2500 CLASSIC
1997, CHEVY/GMC, K2500HD CLASSIC
1997, CHEVY/GMC, K3500 CLASSIC
1997, CHEVY/GMC, SUBURBAN K1500
1997, CHEVY/GMC, SUBURBAN K2500
1997, CHEVY/GMC, TAHOE/YUKON 1500

1996, CHEVY/GMC, 1/2 TON SUBURBAN (1500)
1996, CHEVY/GMC, 3/4 TON SUBURBAN (2500)
1996, CHEVY/GMC, K1500
1996, CHEVY/GMC, K2500 HEAVY DUTY
1996, CHEVY/GMC, K3500
1996, CHEVY/GMC, TAHOE
1996, CHEVY/GMC, YUKON

1995, CHEVY/GMC, 1/2 TON SUBURBAN (1500)
1995, CHEVY/GMC, 3/4 TON SUBURBAN (2500)
1995, CHEVY/GMC, K1500
1995, CHEVY/GMC, K2500 HEAVY DUTY
1995, CHEVY/GMC, K2500 LIGHT DUTY
1995, CHEVY/GMC, K3500
1995, CHEVY/GMC, TAHOE
1995, CHEVY/GMC, YUKON

1994, CHEVY/GMC, 1/2 TON SUBURBAN (1500)
1994, CHEVY/GMC, 3/4 TON SUBURBAN (2500)
1994, CHEVY/GMC, BLAZER (FULL SIZE)
1994, CHEVY/GMC, K1500
1994, CHEVY/GMC, K2500 HEAVY DUTY
1994, CHEVY/GMC, K2500 LIGHT DUTY
1994, CHEVY/GMC, K3500
1994, CHEVY/GMC, YUKON

1993, CHEVY/GMC, 1/2 TON SUBURBAN (1500)
1993, CHEVY/GMC, 3/4 TON SUBURBAN (2500)
1993, CHEVY/GMC, BLAZER (FULL SIZE)
1993, CHEVY/GMC, K1500
1993, CHEVY/GMC, K2500 HEAVY DUTY
1993, CHEVY/GMC, K2500 LIGHT DUTY
1993, CHEVY/GMC, K3500
1993, CHEVY/GMC, YUKON

1992, CHEVY/GMC, 1/2 TON SUBURBAN (1500)
1992, CHEVY/GMC, 3/4 TON SUBURBAN (2500)
1992, CHEVY/GMC, BLAZER (FULL SIZE)
1992, CHEVY/GMC, K1500
1992, CHEVY/GMC, K2500 HEAVY DUTY
1992, CHEVY/GMC, K2500 LIGHT DUTY
1992, CHEVY/GMC, K3500
1992, CHEVY/GMC, YUKON

1991, CHEVY/GMC, K1500
1991, CHEVY/GMC, K2500 HEAVY DUTY
1991, CHEVY/GMC, K2500 LIGHT DUTY
1991, CHEVY/GMC, K3500

1990, CHEVY/GMC, K1500
1990, CHEVY/GMC, K2500 HEAVY DUTY
1990, CHEVY/GMC, K2500 LIGHT DUTY
1990, CHEVY/GMC, K3500

1989, CHEVY/GMC, K1500
1989, CHEVY/GMC, K2500 HEAVY DUTY
1989, CHEVY/GMC, K2500 LIGHT DUTY
1989, CHEVY/GMC, K3500

1988, CHEVY/GMC, K1500
1988, CHEVY/GMC, K2500 HEAVY DUTY
1988, CHEVY/GMC, K2500 LIGHT DUTY
1988, CHEVY/GMC, K3500
