17153 Meyer Custom Mount Chevy GMC 4500/ 5500 4x4 Topkick 16,000-26,000 GVW 05-2010

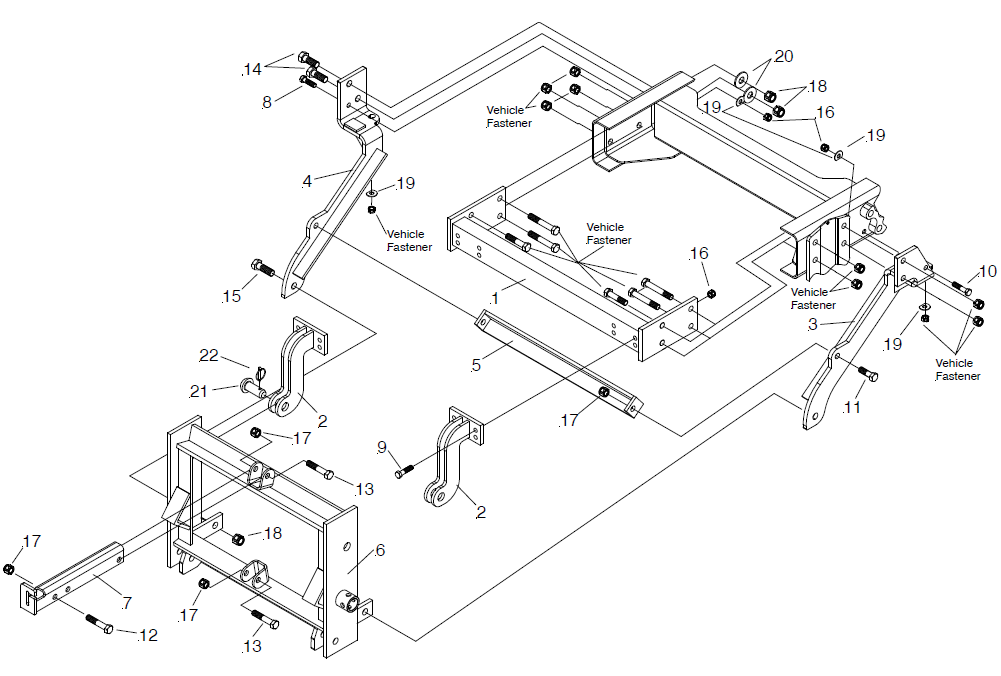

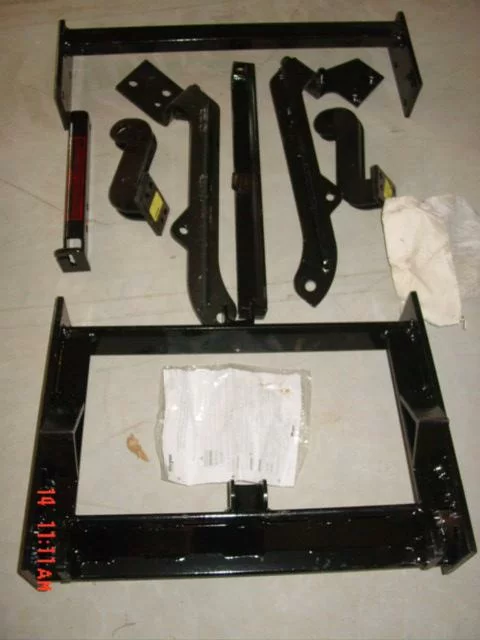

A new Meyer Mount 17153. This is for the 2005-2010 GMC 4500/5500 4WD. Also works on Chevy Topkick 4WD (C4500 / C5500.) The kit includes Lift Frame 19152, Hanger Weldment 19588, Left Hand Push Plate 19573, Right Hand Push Plate 19574, Long Lift Arm 14219, Light Brackets 19168, and Hardware Bag 08869.

If you have a 2WD version of the truck, you need mount 17133.

Here is a link to the installation instructions for the 17153 mount.

For this mount, the spread on the back of the A-frame is 23.5" center to center. Some are larger, so make sure the blade you have is correct.

Meyer recommends that on the 18000/19000 GVWP trucks you use HM-9, HMP-9, HM-10 or HMP-10.

For the trucks with 16,500 GVWR (C-9, CP9, or the HML-10), if you need the sector and A-frame, it is kit 16489.
