17133 Meyer Custom Mount 02-10 Chevy GMC 4500/ 5500 2WD Topkick 16,000-19,500 GVW

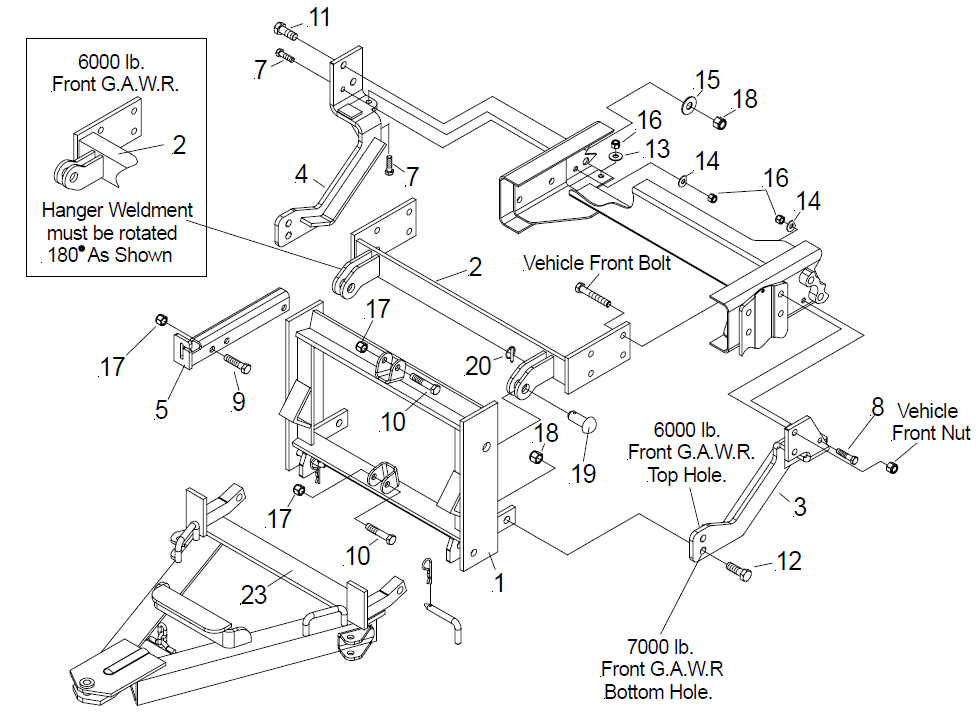

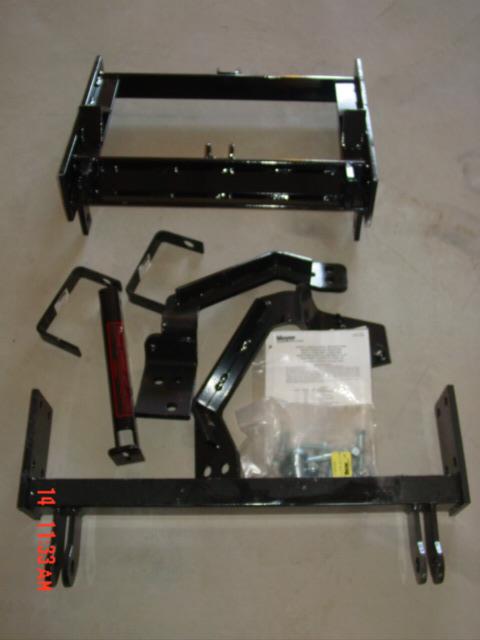

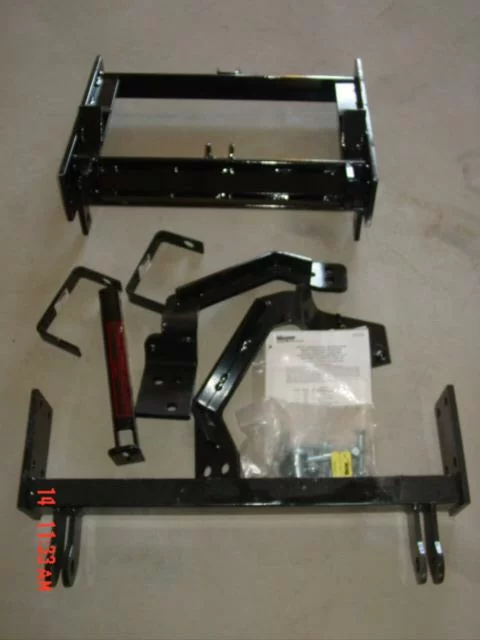

A new Meyer mount 17133. This is for the 2002-2010 GMC 4500/5500 2WD. Also works on Chevy Topkick 2WD (C4500 / C5500.) The kit includes Lift Frame 19152, Hanger Weldment 11790, Left Hand Push Plate 19019, Right Hand Push Plate 19020, Long Lift Arm 14219, Light Brackets 19168 and Hardware Bag 08786.

If you have a 4WD version of the truck, you need mount 17153.

Here is a link to the Installation instructions for the 17133 mount.

For this mount, the spread on the back of the A-frame is 23.5" center to center. Some are larger, so make sure the blade you have is correct. This also needs an H model Meyer pump.

Meyer recommends that on the 18000/19000 GVWR trucks you use a HM-9, HMP-9, HM-10 or HMP-10.

For the trucks with 16,500 GVWR C-9, CP9, or the HML-10,if you need the sector and A-frame it is kit 16489.
